C:\Users\master\Documents\Arma 3 Projects

subst p: "C:\Users\master\Documents\Arma 3 Projects"

subst p: /D

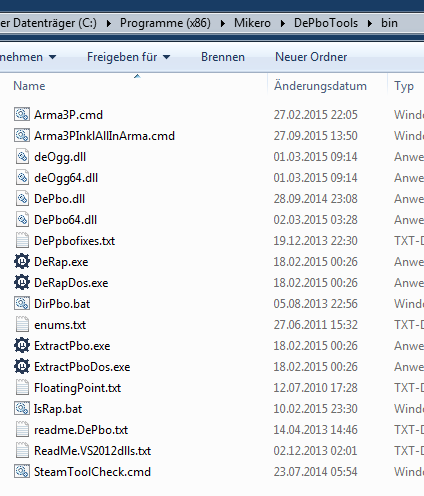

C:\Program Files (x86)\Mikero\DePboTools\bin

rem Die folgenden drei Zeilen sind unveraendert
echo extracting the addons folder....
extractpbo -p "%_ARMA3PATH%\Addons" p:\
if ERRORLEVEL 1 goto err

rem Ergaenzt von Schmitt um auch die AiA Dateien zu extrahieren
echo extracting the allinarma addons folder....
extractpbo -p "%_ARMA3PATH%\@AllInArmaDataTerrainPack\addons" p:\
if ERRORLEVEL 1 goto err

D:\SteamLibrary\SteamApps\common\Arma 3\Addons

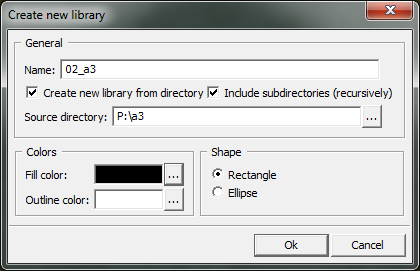

P:\a3

P:\ca

P:\xCam\data
P:\xCam\xcam_objects
P:\xCam_Metal\data
P:\xcam_pipe\Pipe\Data
P:\xcam_wood\data
P:\xCam_Woodworks\data

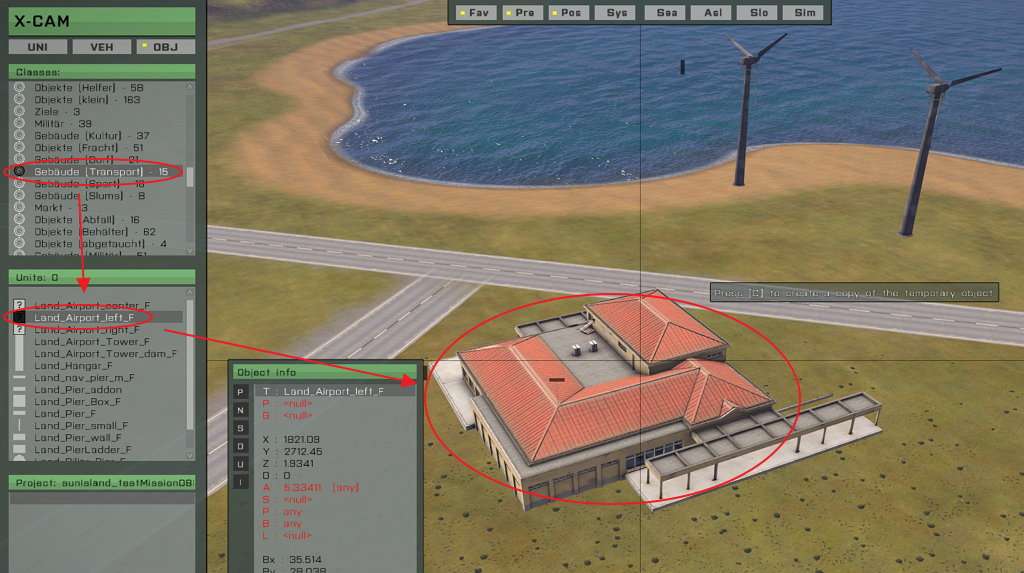

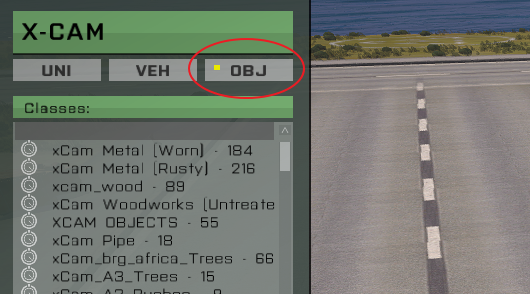

D:\SteamLibrary\SteamApps\common\Arma 3\@xCam\addons

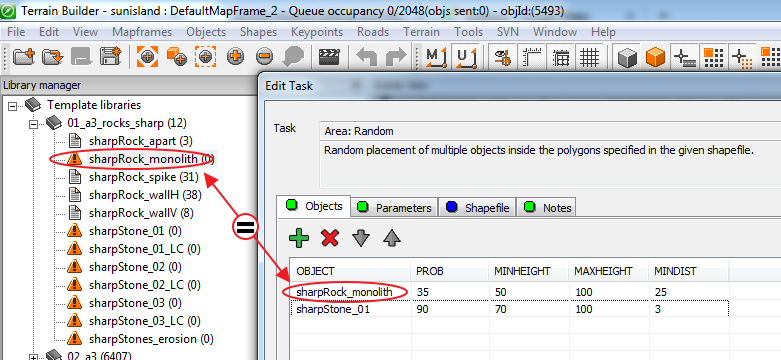

P:\a3\rocks_f\sharpRock_spike.p3d
P:\a3\rocks_f\sharpRock_wallH.p3d
P:\a3\rocks_f\sharpRock_wallV.p3d
...

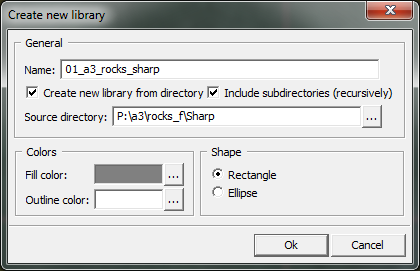

P:\a3\rocks_f\Sharp\sharpRock_spike.p3d
P:\a3\rocks_f\Sharp\sharpRock_wallH.p3d
P:\a3\rocks_f\Sharp\sharpRock_wallV.p3d
...

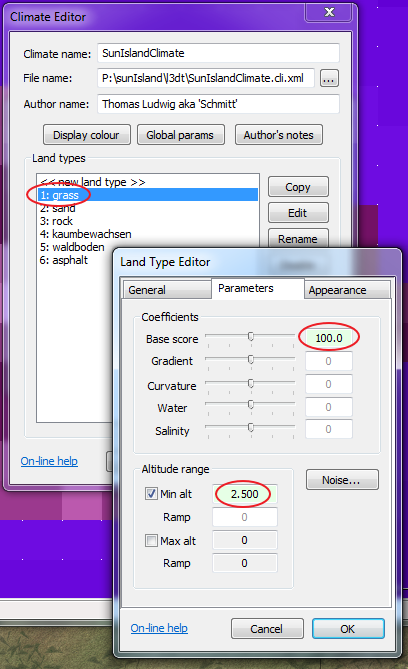

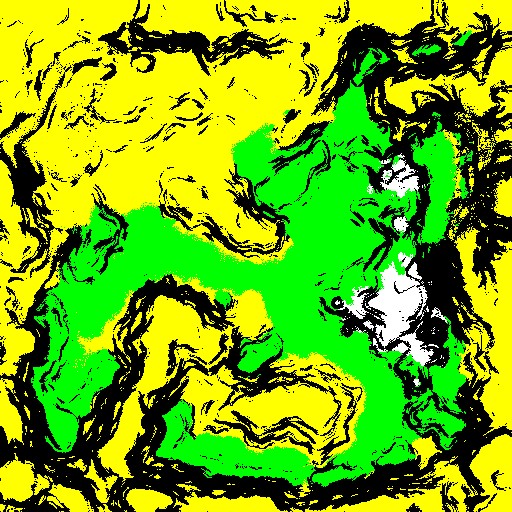

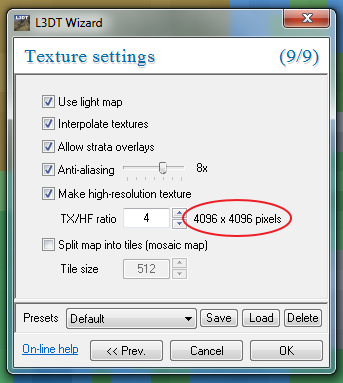

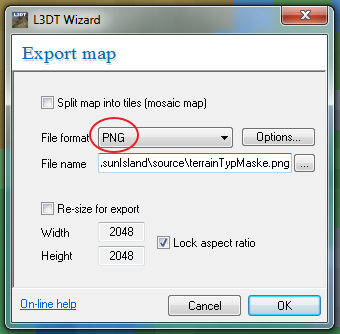

P:\sunIsland\source\terrainTypMaske_4096x4096 palette.txt

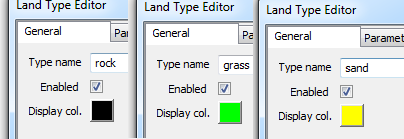

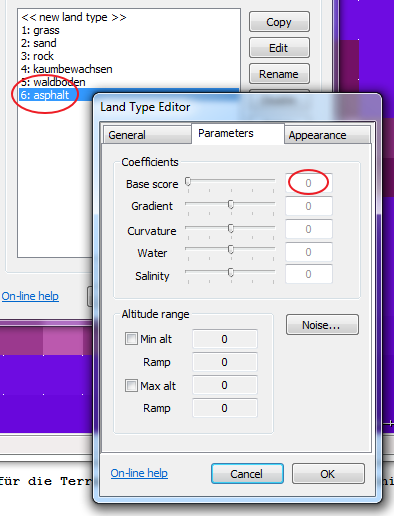

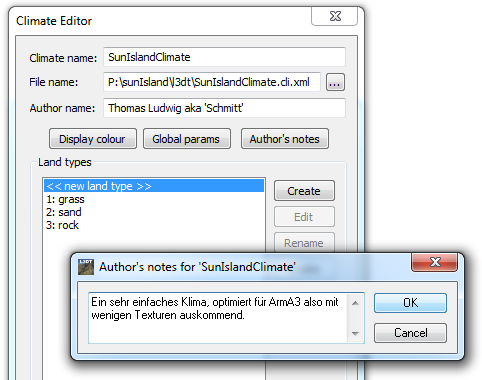

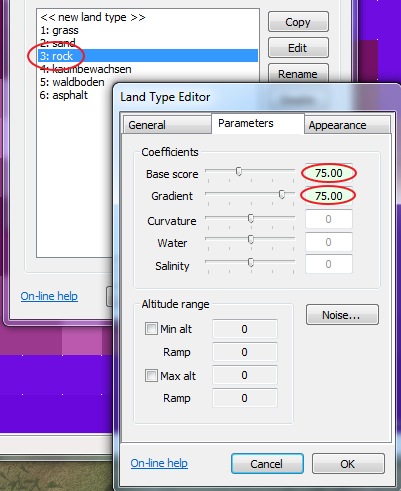

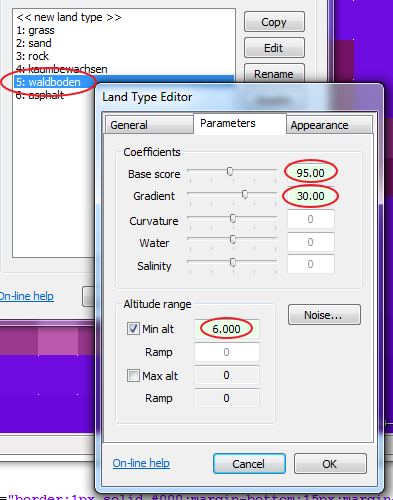

R, G, B, Climate, Land type
0, 255, 0, "SunIslandClimate", "grass",
255, 255, 0, "SunIslandClimate", "sand",
0, 0, 0, "SunIslandClimate", "rock",
255, 100, 0, "SunIslandClimate", "kaumbewachsen",
0, 150, 0, "SunIslandClimate", "waldboden",
120, 120, 120, "SunIslandClimate", "asphalt",

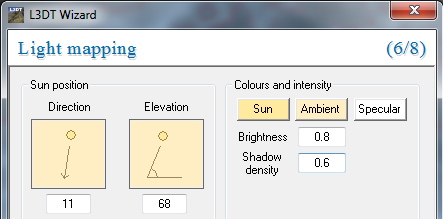

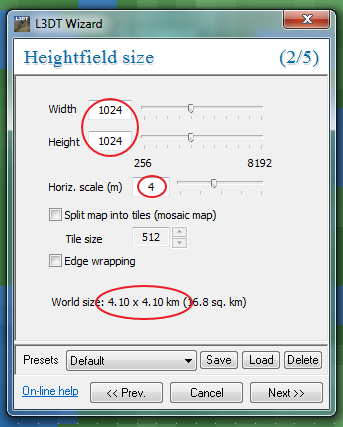

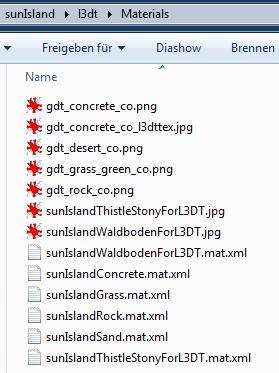

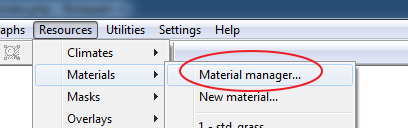

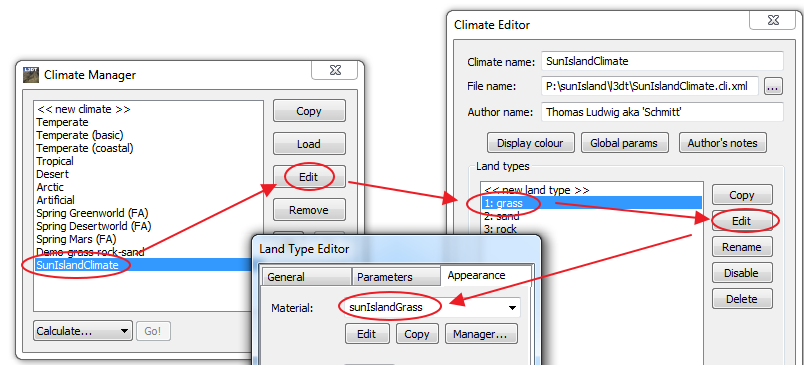

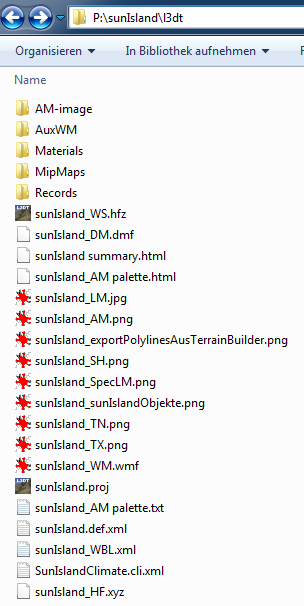

P:\sunIsland\l3dt\Materials

class Clutter
{
	class StrBigFallenBranches_pine: DefaultClutter
	{
		model = "A3\Plants_F\Clutter\c_bigFallenBranches_pine.p3d";
		affectedByWind = 0.0;
		swLighting = "false";
		scaleMin = 0.3;
		scaleMax = 0.7;
	};
	class StrGrassGreenGroup: DefaultClutter
	{
		model = "A3\plants_f\Clutter\c_StrGrassGreen_group.p3d";
		affectedByWind = 0.6;
		swLighting = "true";
		scaleMin = 0.7;
		scaleMax = 1.0;
	};
	class StrGrassDry: DefaultClutter
	{
		model = "A3\plants_f\Clutter\c_StrGrassDry.p3d";
		affectedByWind = 0.5;
		swLighting = "true";
		scaleMin = 0.8;
		scaleMax = 1.2;
	};

	(...)

	class Coral4: DefaultClutter
	{
		model = "A3\Plants_F\Clutter\c_Coral4.p3d";
		affectedByWind = 0.1;
		swLighting = "false";
		scaleMin = 0.3;
		scaleMax = 1.0;
	};
	class Coral5: DefaultClutter
	{
		model = "A3\Plants_F\Clutter\c_Coral5.p3d";
		affectedByWind = 0.05;
		swLighting = "false";
		scaleMin = 0.2;
		scaleMax = 0.6;
	};
};

class CfgSurfaces
{
	class Default{};
	class Water{};
	class GdtConcrete: Default
	{
		access = 2;
		files = "gdt_concrete_*";
		character = "Empty";
		soundEnviron = "concrete";
		soundHit = "concrete";
		rough = 0.05;
		maxSpeedCoef = 1;
		dust = 0.15;
		lucidity = 0.3;
		grassCover = 0.0;
		impact = "hitConcrete";
	};
	class GdtStratisGreenGrass: Default
	{
		access = 2;
		files = "gdt_grass_green_*";
		character = "StratisGreenGrassClutter";
		soundEnviron = "grass";
		soundHit = "soft_ground";
		rough = 0.08;
		maxSpeedCoef = 0.9;
		dust = 0.15;
		lucidity = 4;
		grassCover = 0.05;
		impact = "hitGroundSoft";
		surfaceFriction = 1.7;
	};

	(...)

	class GdtForestPine: Default
	{
		access = 2;
		files = "gdt_forest_pine_*";
		character = "ForestPineClutter";
		soundEnviron = "drygrass";
		soundHit = "soft_ground";
		rough = 0.12;
		maxSpeedCoef = 0.8;
		dust = 0.4;
		lucidity = 3.5;
		grassCover = 0.04;
		impact = "hitGroundSoft";
		surfaceFriction = 1.7;
	};
};

class CfgSurfaceCharacters
{
	class StratisForestPineClutter
	{
		probability[] = {0.05,0.012,0.01,0.1,0.05};
		names[] = {"StrBigFallenBranches_pine","StrBigFallenBranches_pine02","StrBigFalle... (gekürzt)
	};
	class StratisDryGrassClutter
	{
		probability[] = {0.21,0.35,0.21,0.09,0.06,0.02};
		names[] = {"StrGrassDryGroup","StrGrassDryMediumgroup","StrWeedBrownTallGroup","Str... (gekürzt)
	};
	class StratisGreenGrassClutter
	{
		probability[] = {0.95,0.02,0.02,0.01};
		names[] = {"StrGrassGreenGroup","StrThornGreenSmall","StrThornGreenBig","StrPlantGreenShrub"};
	};

	(...)

	class SeabedClutter
	{
		probability[] = {0.4,0.2,0.1,0.01,0.1,0.09,0.1};
		names[] = {"SeaWeed1","SeaWeed2","Coral4","Coral1","Coral5","Coral3","Coral2"};
	};
};

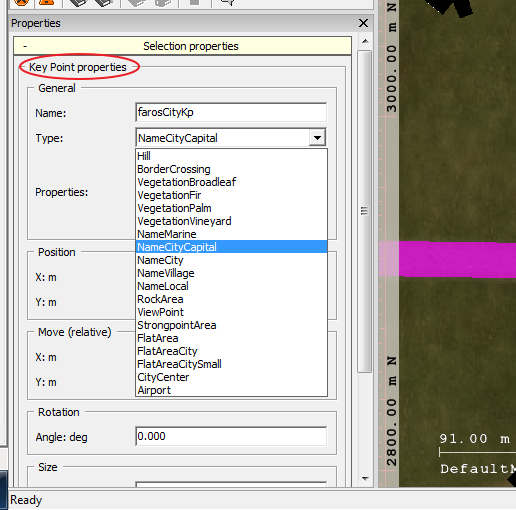

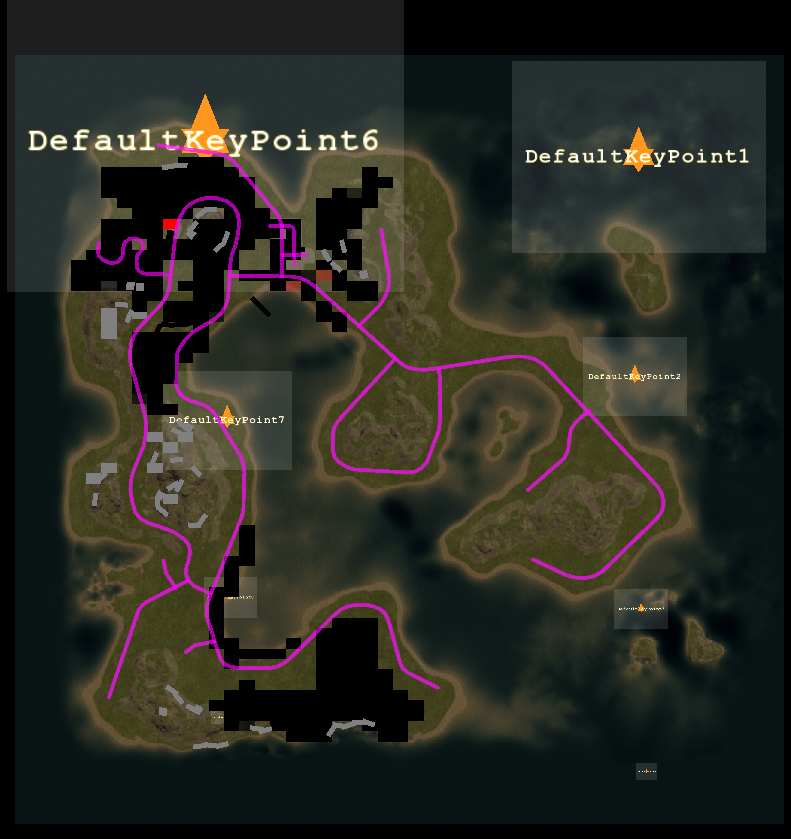

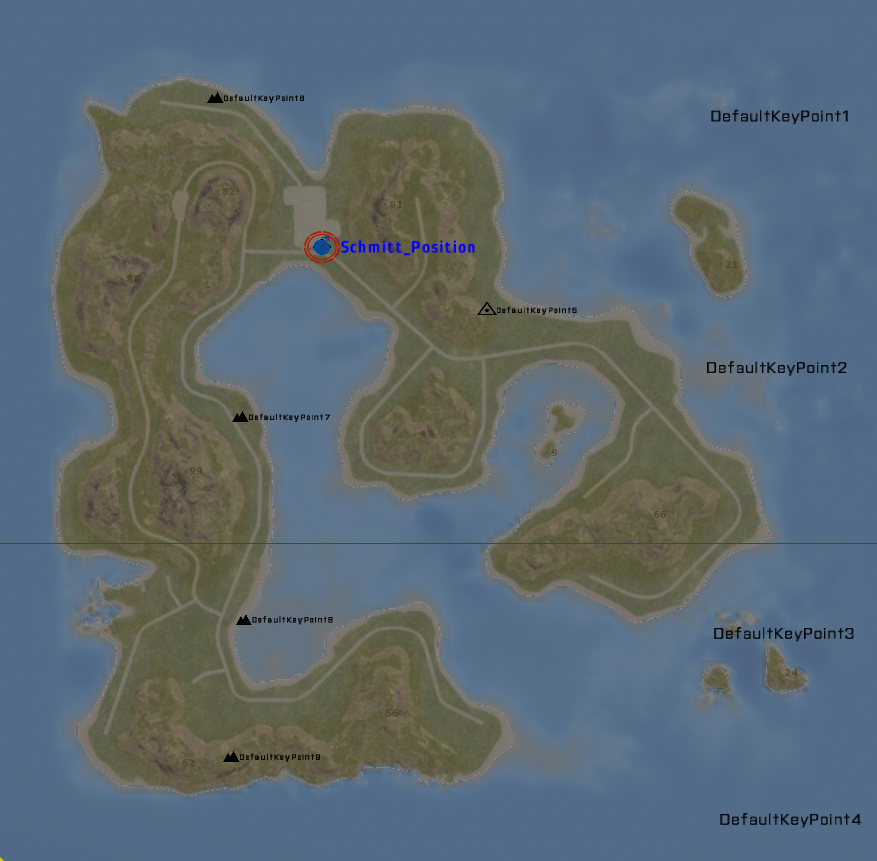

class farosCityKp
{
	name="Faros";
	position[]={1456.66,3087.76};
	type="NameCityCapital";

	radiusA=284.77;
	radiusB=268.75;
	angle=0.000;
};
class schuhfabrikKp
{
	name="Schuhfabrik";
	position[]={821.02,3140.14};
	type="Hill";

	radiusA=93.31;
	radiusB=88.06;
	angle=0.000;
};

#define _ARMA_

class CfgPatches
{
	class sunIsland
	{
		units[] = {"sunIsland"};
		weapons[] = {};
		requiredVersion = 1.0;
		version = "11/09/2015";
		fileName = "sunIsland.pbo";
		author = "Schmitt";
		mail = "smallfly@gmx.de";
	};
};

class CfgWorlds
{
	class CAWorld;

	class Stratis: CAWorld
	{
		class Grid;
		class DefaultClutter;
	};

	class sunIsland: Stratis
	{
		cutscenes[] = {};
		description = "Sun Island";
		worldName = "sunIsland\sunIsland.wrp";
		startTime = "11:00";
		startDate = "05/03/2001";
		startWeather = 0.2;
		startFog = 0.0;
		forecastWeather = 0.6;
		forecastFog = 0.0;
		centerPosition[] = {2560,2560,500};
		seagullPos[] = {2560,2560,500};
		longitude = 65;
		latitude = -34;
		elevationOffset = 2000;
		envTexture = "A3\Data_f\env_land_ca.tga";
		minTreesInForestSquare = 2;
		minRocksInRockSquare = 2;

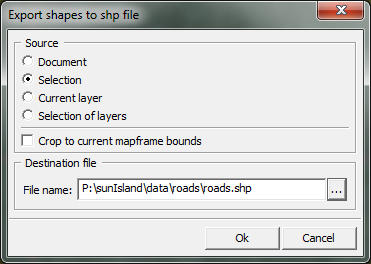

		newRoadsShape = "\sunIsland\data\roads\roads.shp";
		ilsPosition[] = {1024,1024};
		ilsDirection[] = {0.5075,0.08,-0.8616};
		ilsTaxiIn[] = {};
		ilsTaxiOff[] = {};
		drawTaxiway = 0;

		class SecondaryAirports {};

		class Sea
		{
			seaTexture = "a3\data_f\seatexture_co.paa";
			seaMaterial = "#water";
			shoreMaterial = "#shore";
			shoreFoamMaterial = "#shorefoam";
			shoreWetMaterial = "#shorewet";
			WaterMapScale = 20;
			WaterGrid = 50;
			MaxTide = 0;
			MaxWave = 0;
			SeaWaveXScale = "2.0/50";
			SeaWaveZScale = "1.0/50";
			SeaWaveHScale = 2.0;
			SeaWaveXDuration = 5000;
			SeaWaveZDuration = 10000;
		};

		class OutsideTerrain
		{

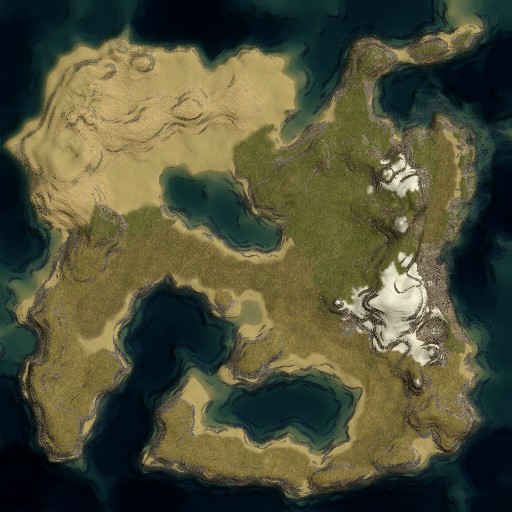

			satellite = "sunIsland\data\SatellitenBildUmgebung.paa";
			enableTerrainSynth = 0;

			class Layers
			{
				class Layer0
				{
					nopx = "sunIsland\data\gdt_grass_green_nopx.paa";
					texture = "sunIsland\data\gdt_grass_green_co.paa";
				};
			};
		};

		class Grid: Grid
		{
			offsetX = 0;
			offsetY = 5120;

			class Zoom1
			{
				zoomMax = 0.15;
				format = "XY";
				formatX = "000";
				formatY = "000";
				stepX = 100;
				stepY = -100;
			};

			class Zoom2
			{
				zoomMax = 0.85;
				format = "XY";
				formatX = "00";
				formatY = "00";
				stepX = 1000;
				stepY = -1000;
			};

			class Zoom3
			{
				zoomMax = 1e+030.0;
				format = "XY";
				formatX = "0";
				formatY = "0";
				stepX = 10000;
				stepY = -10000;
			};
		};

		#include "cfgClutter.hpp"

		class Names
		{
			#include "sunIsland.hpp"
		};
	};
};

class CfgWorldList
{
	class sunIsland{};
};

class CfgMissions
{
	class Cutscenes
	{
	};
};

#include "cfgSurfaces.hpp"

ambient[]={0.89999998,0.89999998,0.89999998,1};
diffuse[]={0.89999998,0.89999998,0.89999998,1};
forcedDiffuse[]={0.02,0.02,0.02,1};
emmisive[]={0,0,0,0};
specular[]={0,0,0,0};
specularPower=1;
PixelShaderID="NormalMapDiffuse";
VertexShaderID="NormalMapDiffuseAlpha";

class Stage1
{
	texture="sunIsland\data\gdt_grass_green_nopx.paa";
	uvSource="tex";

	class uvTransform
	{
		aside[]={10,0,0};
		up[]={0,10,0};
		dir[]={0,0,10};
		pos[]={0,0,0};
	};
};

class Stage2
{
	texture="sunIsland\data\gdt_grass_green_co.paa";
	uvSource="tex";

	class uvTransform
	{
		aside[]={10,0,0};
		up[]={0,10,0};
		dir[]={0,0,10};
		pos[]={0,0,0};
	};
};

...
190 333 48.672153
191 333 47.831406
192 333 46.898220
193 333 45.994518
194 333 45.030376
195 333 44.010223
196 333 43.016109
197 333 42.055313
198 333 41.107517
...

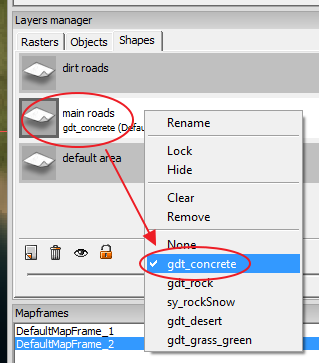

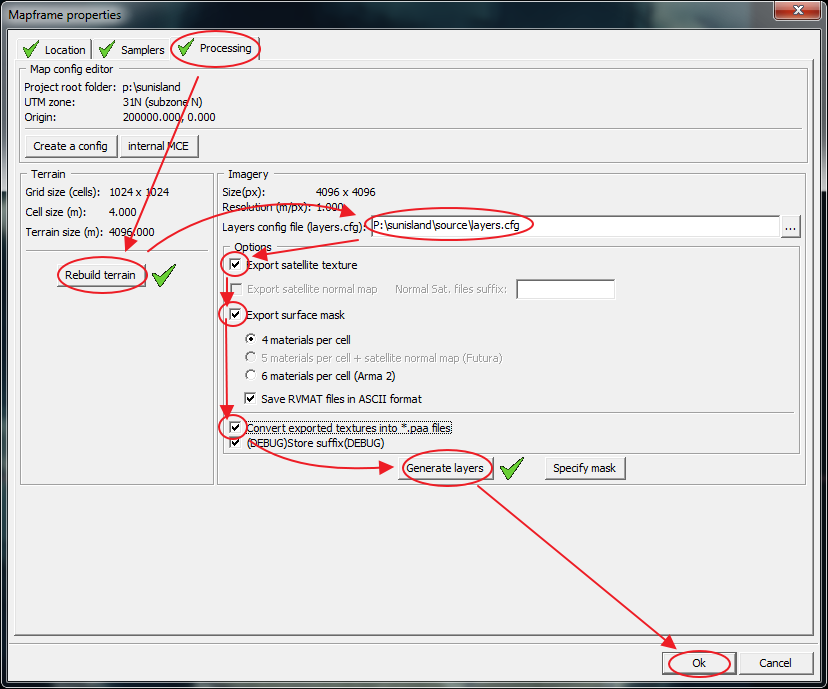

class Layers
{
	class gdt_concrete
	{
		texture = "sunIsland\data\gdt_concrete_mco.paa";
		material= "sunIsland\data\gdt_concrete.rvmat";
	};

	class gdt_rock
	{
		texture = "sunIsland\data\gdt_rock_mco.paa";
		material= "sunIsland\data\gdt_rock.rvmat";
	};

	class gdt_desert
	{
		texture = "sunIsland\data\gdt_desert_mco.paa";
		material= "sunIsland\data\gdt_desert.rvmat";
	};

	class gdt_grass_green
	{
		texture = "sunIsland\data\gdt_grass_green_mco.paa";
		material= "sunIsland\data\gdt_grass_green.rvmat";
	};

	class gdt_forest_pine
	{
		texture = "sunIsland\data\gdt_forest_pine_mco.paa";
		material= "sunIsland\data\gdt_forest_pine.rvmat";
	};

	class gdt_thistle_stony
	{
		texture = "sunIsland\data\gdt_thistle_stony_mco.paa";
		material= "sunIsland\data\gdt_thistle_stony.rvmat";
	};
};

class Legend
{
	picture="sunIsland\source\mapLegend.png";

	class Colors
	{
		gdt_concrete[]={{120, 120, 120}};
		gdt_rock[]={{0, 0, 0}};
		gdt_desert[]={{255, 255, 0}};
		gdt_grass_green[]={{0, 255, 0}, {0, 255, 60}};
		gdt_forest_pine[]={{0, 150, 0}};
		gdt_thistle_stony[]={{255, 150, 0}};
	};
};

P:\scripts\
P:\scripts\editor.sqs

~0.1

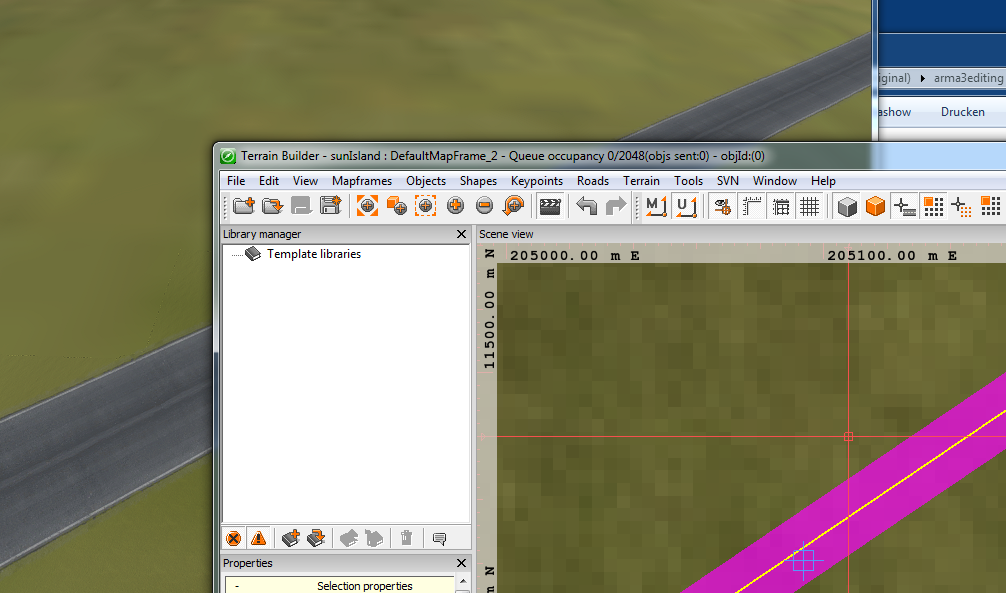

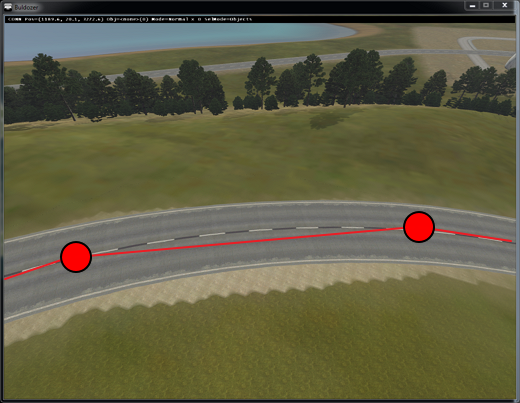

result = buldozer_LoadNewRoads "P:/sunIsland/data/roads/";

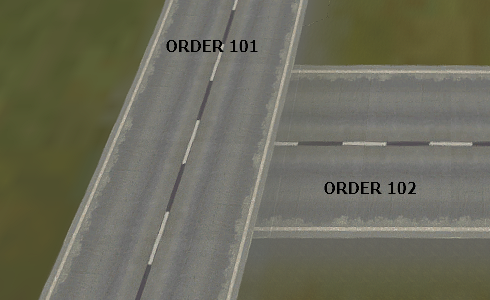

class RoadTypesLibrary
{
	class Road0001
	{
		width       = 14;
		mainStrTex  = "a3\roads_f\roads_ae\data\surf_roadtarmac_highway_ca.paa";  // lowercase!
		mainTerTex  = "a3\roads_f\roads_ae\data\surf_roadtarmac_highway_end_ca.paa";
		mainMat     = "a3\roads_f\roads_ae\data\surf_roadtarmac_highway.rvmat";
		map         = "main road";
		AIpathOffset= 3;

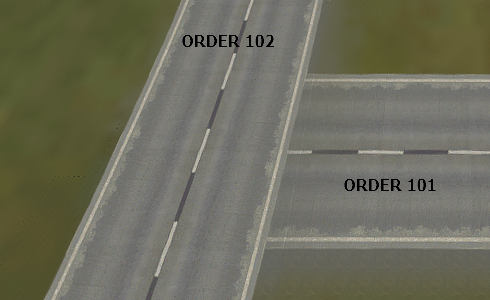

		order = 3;
	};

	class Road0002
	{
		width       = 10;
		mainStrTex  = "a3\roads_f\roads_ae\data\surf_roadtarmac_main_road_ca.paa";  // lowercase!
		mainTerTex  = "a3\roads_f\roads_ae\data\surf_roadtarmac_main_road_end_ca.paa";
		mainMat     = "a3\roads_f\roads_ae\data\surf_roadtarmac_main_road.rvmat";
		map         = "road";
		AIpathOffset= 3;
		order = 4;
	};

	class Road0003
	{
		width       = 10;
		mainStrTex  = "a3\roads_f\roads_ae\data\surf_roaddirt_road_ca.paa";  // lowercase!
		mainTerTex  = "a3\roads_f\roads_ae\data\surf_roaddirt_road_end_ca.paa";
		mainMat     = "a3\roads_f\roads_ae\data\surf_roaddirt_road.rvmat";
		map         = "track";
		AIpathOffset= 3;
		order = 5;
	};

	class Road0004
	{
		width       = 10;
		mainStrTex  = "a3\roads_f\roads_ae\data\surf_roadconcrete_city_road_ca.paa";  // lowercase!
		mainTerTex  = "a3\roads_f\roads_ae\data\surf_roadconcrete_city_road_end_ca.paa";
		mainMat     = "a3\roads_f\roads_ae\data\surf_roadconcrete_city_road.rvmat";
		map         = "track";
		AIpathOffset= 3;
		order = 2;
	};

	class Road0005
	{
		width       = 7;
		mainStrTex  = "a3\roads_f\roads_ae\data\surf_roaddirt_path_ca.paa";  // lowercase!
		mainTerTex  = "a3\roads_f\roads_ae\data\surf_roaddirt_path_end_ca.paa";
		mainMat     = "a3\roads_f\roads_ae\data\surf_roaddirt_path.rvmat";
		map         = "track";
		AIpathOffset= 2.5;
		order = 6;
	};

	class Road0006
	{
		width       = 10;
		mainStrTex  = "a3\roads_f\roads_ae\data\surf_roaddirt_trans_ca.paa";  // lowercase!
		mainTerTex  = "a3\roads_f\roads_ae\data\surf_roaddirt_trans_end_ca.paa";
		mainMat     = "a3\roads_f\roads_ae\data\surf_roaddirt_trans.rvmat";
		map         = "road";
		AIpathOffset= 1.5;
		order = 7;
	};

	class Road0007
	{
		width       = 14;
		mainStrTex  = "a3\roads_f\Roads\data\highway_ca.paa";  // lowercase!
		mainTerTex  = "a3\roads_f\Roads\data\highway_end_ca.paa";
		mainMat     = "a3\roads_f\Roads\data\Highway.rvmat";
		map         = "road";
		AIpathOffset= 1.5;
		order = 1;
	};
};

P:\a3\roads_f\Roads_AE\data

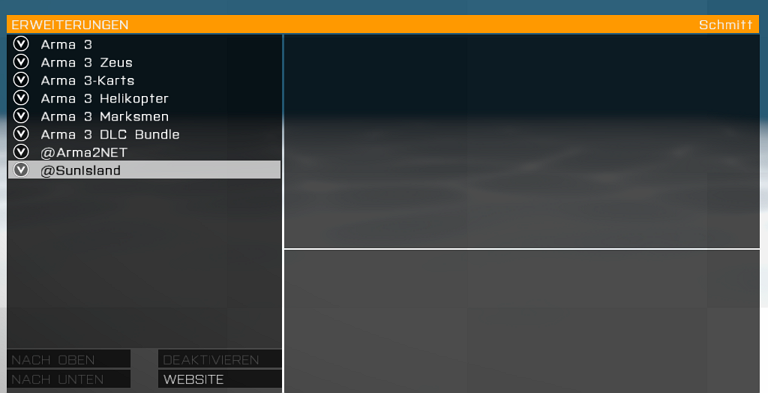

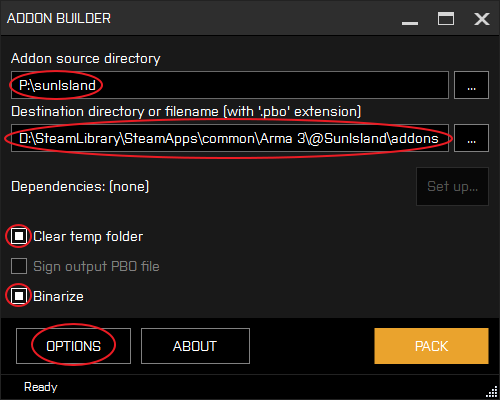

D:\SteamLibrary\SteamApps\common\Arma 3\@SunIsland\

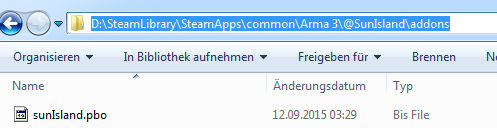

D:\SteamLibrary\SteamApps\common\Arma 3\@SunIsland\addons\

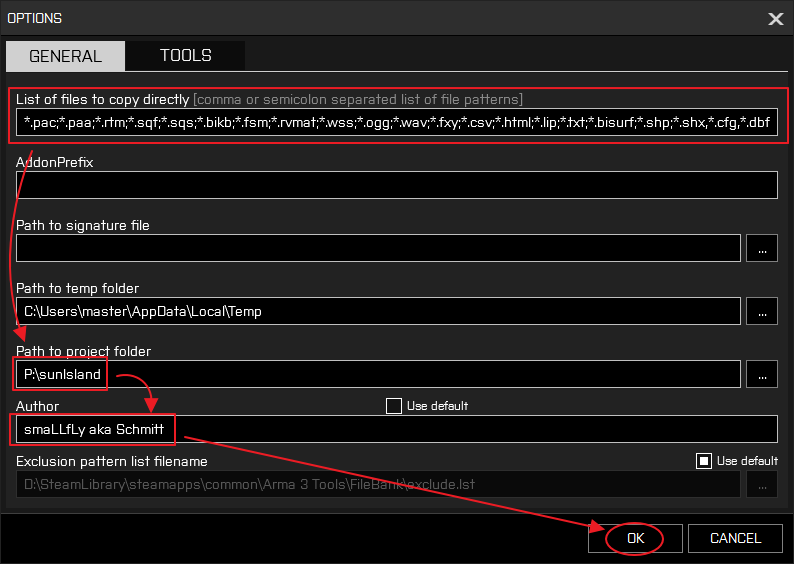

*.pac;*.paa;*.rtm;*.sqf;*.sqs;*.bikb;*.fsm;*.rvmat;*.wss;*.ogg;*.wav;
*.fxy;*.csv;*.html;*.lip;*.txt;*.bisurf;*.shp;*.shx,*.cfg,*.dbf
// Hier auf zwei Zeilen aufgeteilt; muss aber in eine Zeile,
// nämlich unter 'List of files to copy directly'

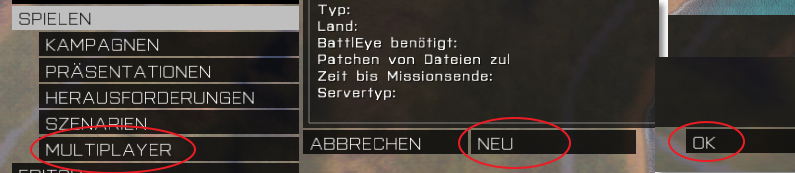

respawn              = "BASE"; // Marker nötig mit Namen respawn_west
respawnDelay         = 1;      // Neustartverzögerung in Sekunden

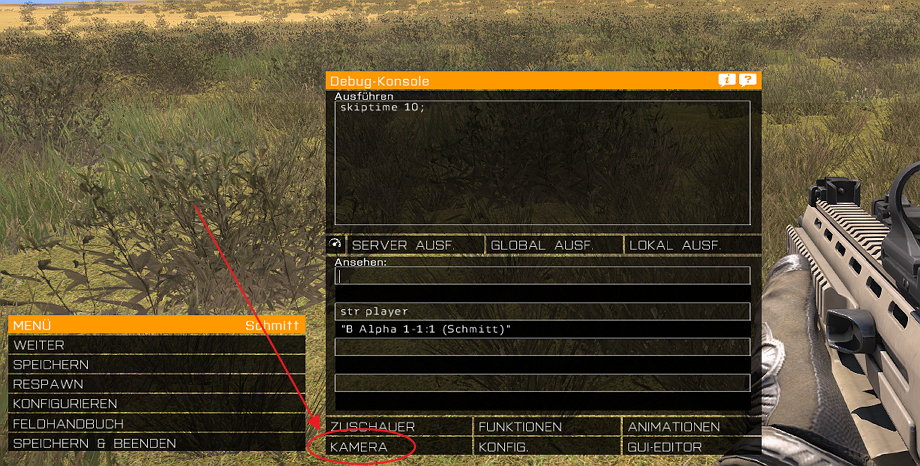

enableDebugConsole   = 2;      // Debugkonsole und somit Vogelperspektive im Spiel verfügbar machen
joinUnassigned       = 0;      // Automatisch einem freien Slot beitreten

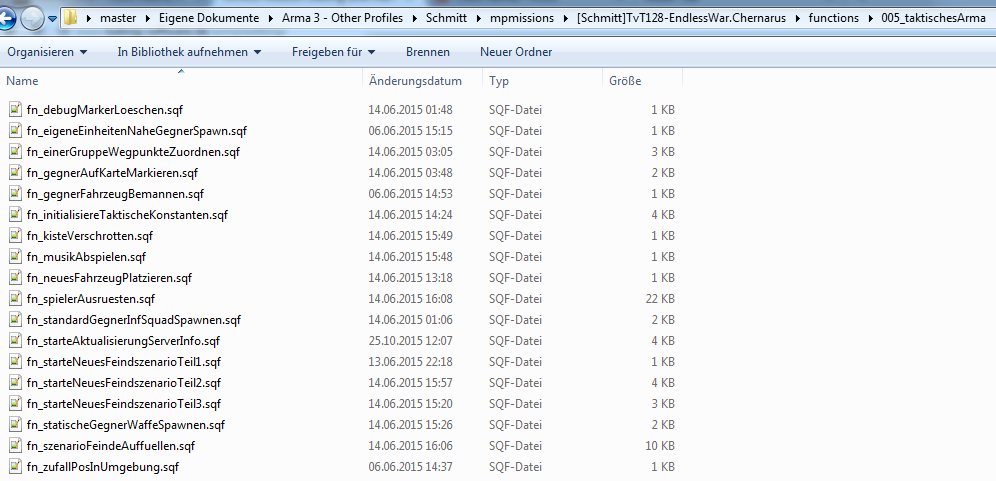

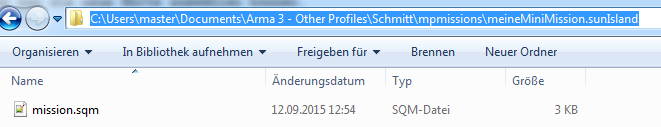

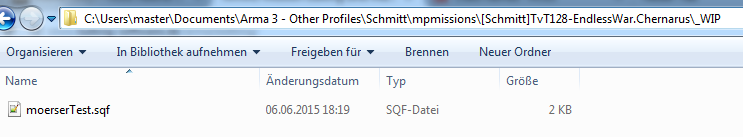

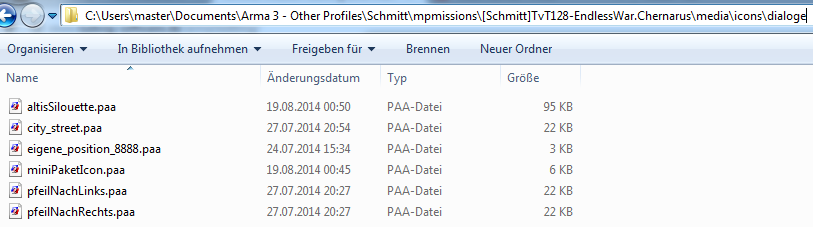

C:\Users\master\Documents\Arma 3 - Other Profiles\Schmitt\mpmissions\Schmittys_Life.Altis

D:\SteamLibrary\SteamApps\common\Arma 3\@xCam\addons\xCam.pbo
D:\SteamLibrary\SteamApps\common\Arma 3\@xCam\addons\xCam_brg_africa.pbo
D:\SteamLibrary\SteamApps\common\Arma 3\@xCam\addons\xCam_EU.pbo
D:\SteamLibrary\SteamApps\common\Arma 3\@xCam\addons\xCam_Metal.pbo
D:\SteamLibrary\SteamApps\common\Arma 3\@xCam\addons\xcam_objects.pbo
D:\SteamLibrary\SteamApps\common\Arma 3\@xCam\addons\xcam_wood.pbo
D:\SteamLibrary\SteamApps\common\Arma 3\@xCam\addons\xCam_Woodworks.pbo

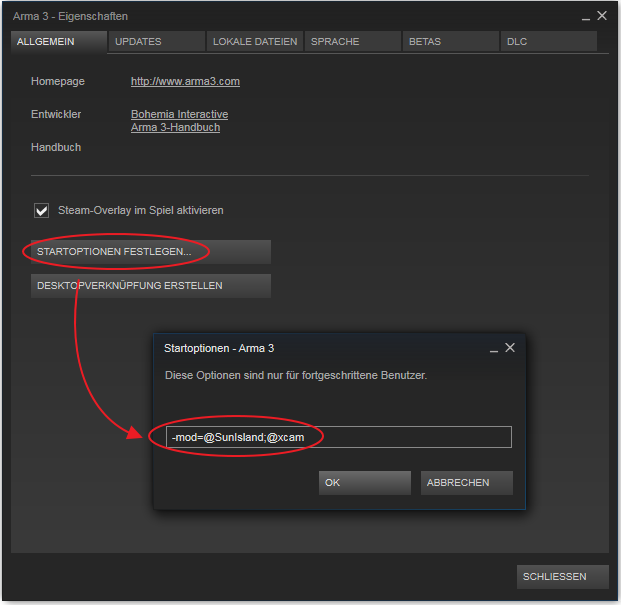

D:\SteamLibrary\SteamApps\common\Arma 3\startparams.txt

-nosplash
-skipIntro
-world=Altis
-mod=@Arma2NET;@SunIsland;@AllInArmaDataTerrainPack;@brg;@inidbi;@xCam;@xcam_prototype
-showScriptErrors
-host
-config=server.cfg

D:\SteamLibrary\SteamApps\common\Arma 3\sunIsland_testMission0815.txt

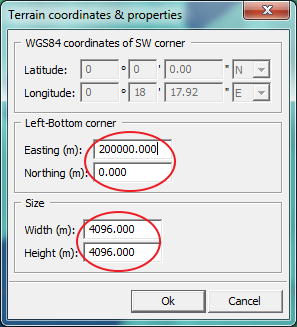

"airport_left_f";202167.40625;2371.561035;0;0;0;1;1.93411
"hangar_f";202293.5625;2378.923828;0;0;0;1;0
"hangar_f";202337.078125;2378.590576;0;0;0;1;0
"hangar_f";202370.484375;2386.177246;0;0;0;1;0

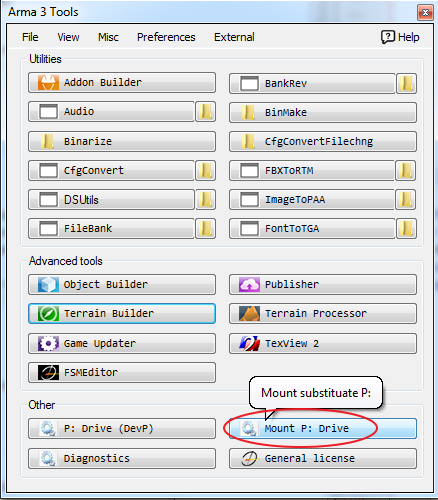

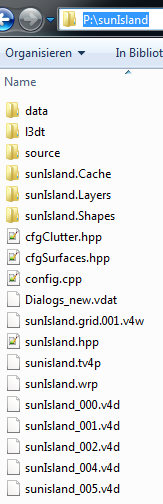

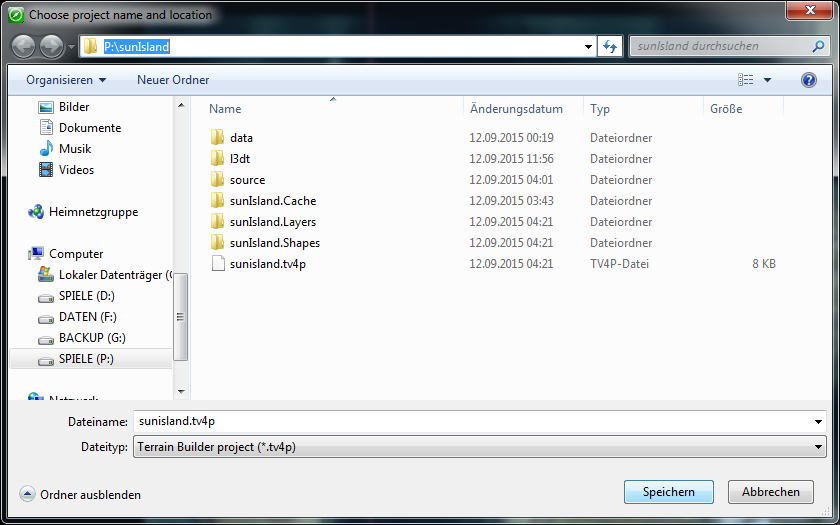

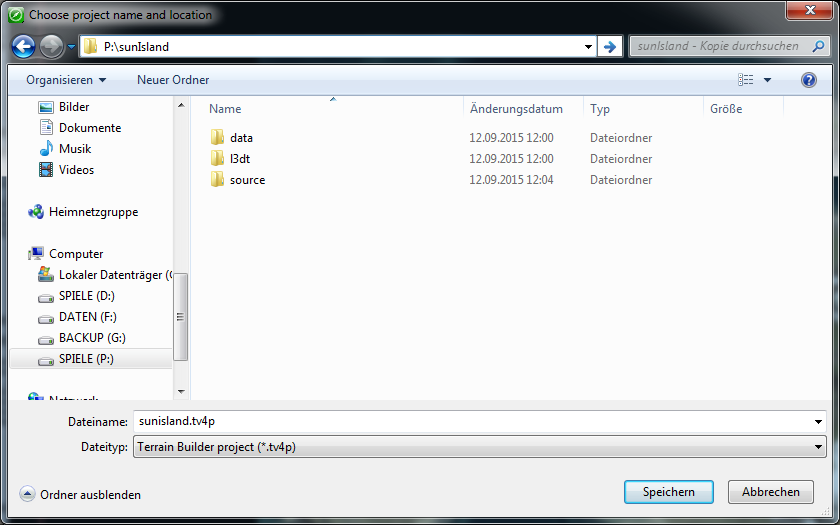

P:\sunIsland

class farosCityKp
{
	name="Faros";
	position[]={1456.66,3087.76};
	type="NameCityCapital";

	radiusA=284.77;
	radiusB=268.75;
	angle=0.000;
};
class schuhfabrikKp
{
	name="Schuhfabrik";
	position[]={821.02,3140.14};
	type="Hill";

	radiusA=93.31;
	radiusB=88.06;
	angle=0.000;
};

Reguläre Ausdrücke um aus einer mission.sqm eine names.hpp zu generieren:
=========================================================================

1. MARKER ISOLIEREN

2. 2x Shift Tab um alle Marker linksbündig zu haben (ohne unnötige Tabstopps)

2. REGULÄRE AUSDRÜCKE ANWENDEN

Name Attribut entfernen

	SUCHEN: (name=)("[A-Za-zäöüß0-9_\ \-]+";\r\n\t)
	ERSETZEN: nichts

Aus Text Attribut ein Name Attribut machen

	SUCHEN: (text=)("[A-Za-zäöüß0-9_\ \-]+";\r\n\t)
	ERSETZEN: name=\2

Höhenwert aus Position löschen

	SUCHEN: (position\[\]=\{)([0-9]+(\.[0-9]+)?,)([0-9]+(\.[0-9]+)?,)([0-9]+(\.[0-9]+)?)(\};)
	ERSETZEN: \1\2\6\8

Markertypen in Keypointtypen umwandeln

	SUCHEN: mil_dot
	ERSETZEN: NameCity

	SUCHEN: mil_triangle
	ERSETZEN: Name

	SUCHEN: mil_box
	ERSETZEN: Name

	SUCHEN: loc_Rock
	ERSETZEN: Hill

Markerfarbe ersatzlos löschen

	SUCHEN: \tcolorName=\"[A-Za-z0-9]+\";\r\n
	ERSETZEN: nichts

Position und Name Attribute tauschen

	SUCHEN: (\tposition\[\]=\{[0-9.,]+\};\r\n)(\tname="[A-Za-zäüöß0-9_\ \-]+";\r\n)
	ERSETZEN: \2\1

Radius und Angle Attribute ergänzen

	SUCHEN: (\ttype="[A-Za-zäüöß0-9_\ \-]+";\r\n)\}
	ERSETZEN: \1\tradiusA=500.0;\r\n\tradiusB=500.0;\r\n\tangle=0.000;\r\n}

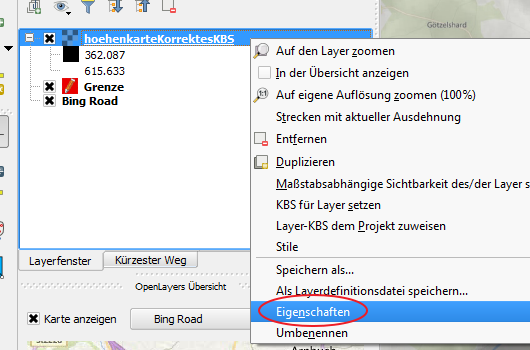

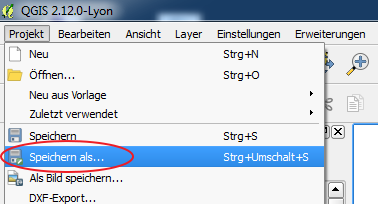

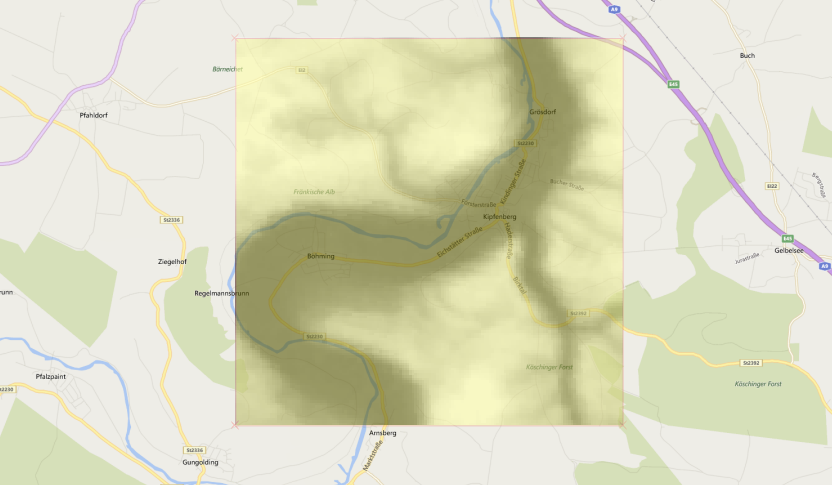

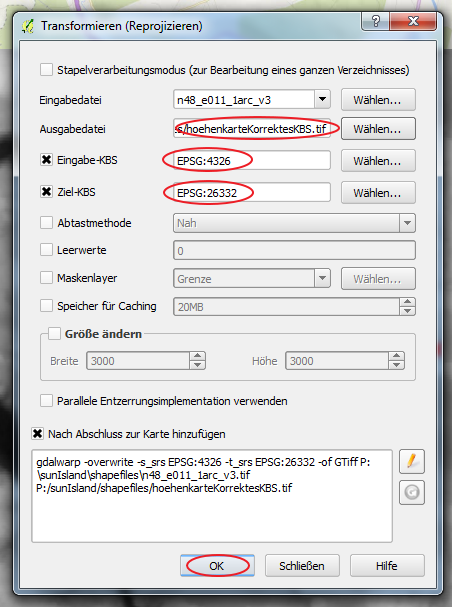

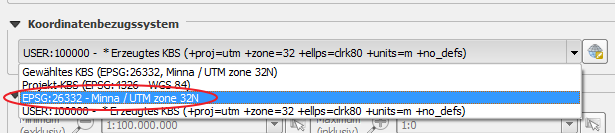

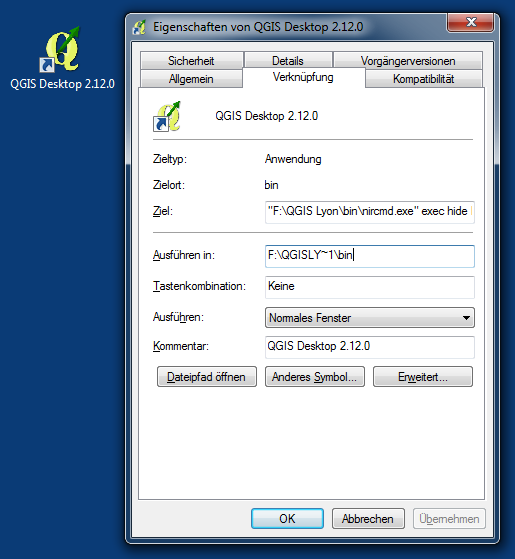

F:\QGIS Lyon

"F:\QGIS Lyon\bin\nircmd.exe" exec hide F:\QGISLY~1\bin\qgis.bat

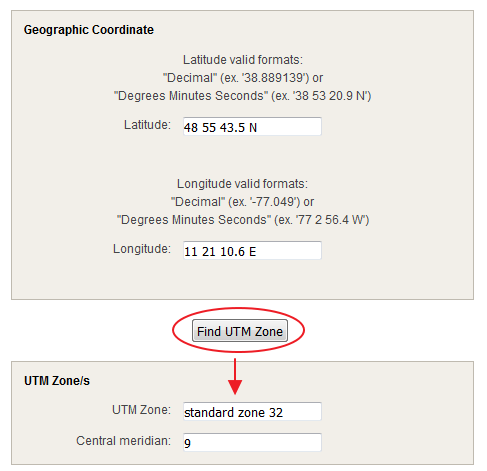

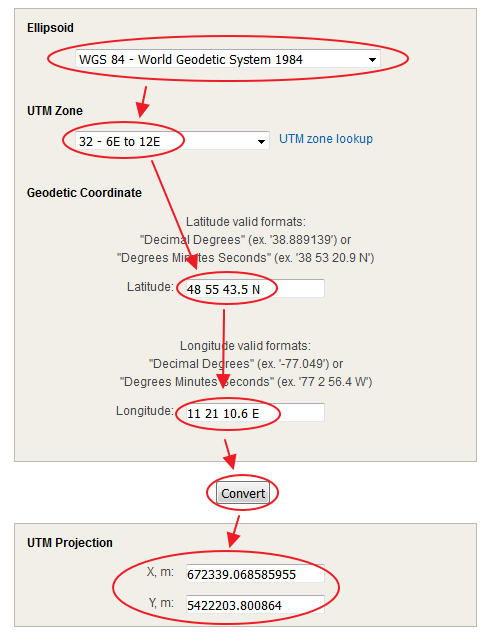

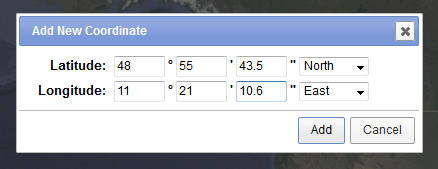

X: 672339.0
Y: 5422203.0

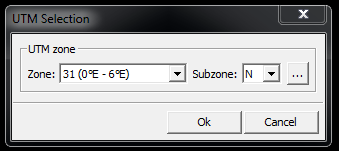

UTM Zone: 32

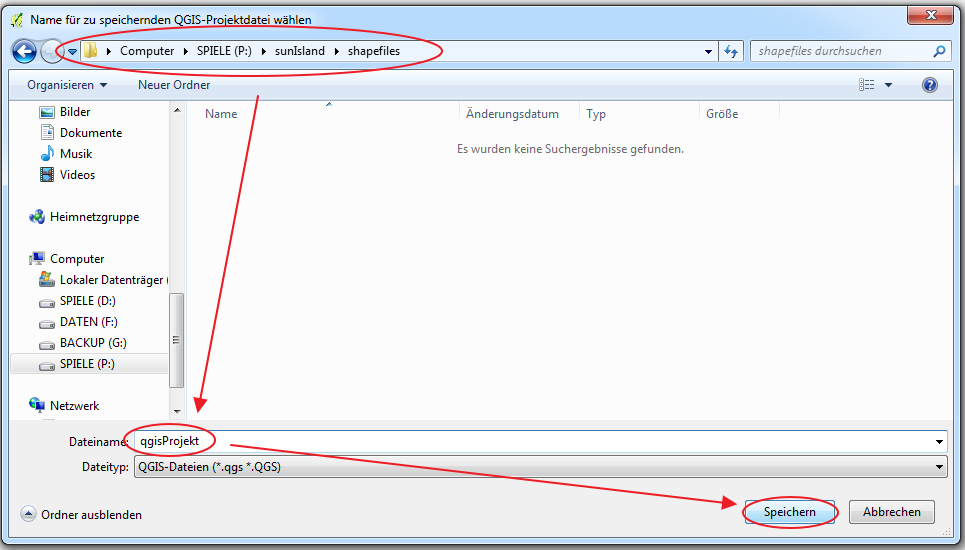

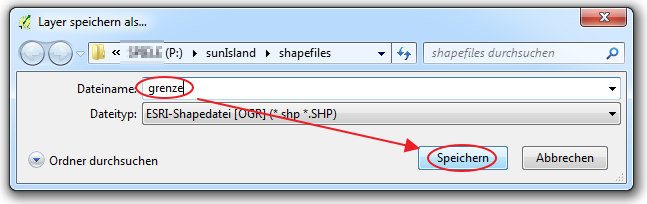

P:\sunIsland\shapefiles

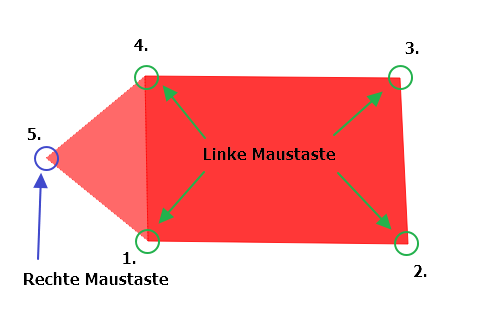

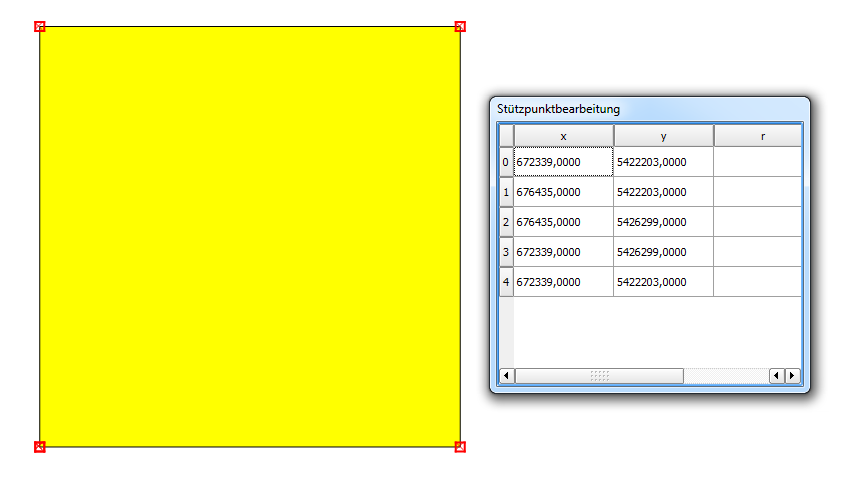

Links unten: X: 672339.0 + 0.0 = 672339.0 // Y: 5422203.0 + 0.0 = 5422203.0
Rechts unten: X: 672339.0 + 4096.0 = 676435.0 // Y: 5422203.0 + 0.0 = 5422203.0
Rechts oben: X: 672339.0 + 4096.0 = 676435.0 // Y: 5422203.0 + 4096.0 = 5426299.0
Links oben: X: 672339.0 + 0.0 = 672339.0 // Y: 5422203.0 + 4096.0 = 5426299.0

D:\SteamLibrary\SteamApps\common\Arma 3\@ace

D:\SteamLibrary\SteamApps\common\Arma 3\@ace

D:\SteamLibrary\SteamApps\common\Arma 3\@CBA_A3

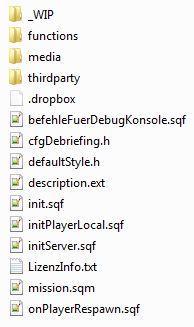

C:\Users\master\Documents\Arma 3 - Other Profiles\Schmitt\mpmissions

C:\Users\master\Documents\Arma 3 - Other Profiles\Schmitt\mpmissions\[Schmitt]TvT128-EndlessWar.Chernarus

/*
	File: cfgDebriefing.h
	Autor: Thomas 'smallfly' Ludwig aka 'Schmitt'
*/

class AufDerBlackList
{
	title             = "Mission fehlgeschlagen";
	subtitle          = "Sie stehen auf der Blacklist!";
	description       = "Bitte wenden Sie sich an einen Supporter in Teamspeak.";
	pictureBackground = "";
	picture           = "";
	pictureColor[]    = {0.5, 0.5, 0.5, 1};
};

class NichtAufDerWhitelist
{
	title             = "Mission fehlgeschlagen";
	subtitle          = "Nicht auf der White-List!";
	description       = "Bitte wenden Sie sich an einen Supporter in Teamspeak.";
	pictureBackground = "";
	picture           = "";
	pictureColor[]    = {0.5, 0.5, 0.5, 1};
};

class UngueltigerSpielerName
{
	title             = "Mission fehlgeschlagen";
	subtitle          = "Ungültiger Spielername!";
	description       = "Bitte benennen Sie sich um.";
	pictureBackground = "";
	picture           = "";
	pictureColor[]    = {0.5, 0.5, 0.5, 1};
};


/*
	File: defaultStyle.h
	Autor: Thomas 'smallfly' Ludwig aka 'Schmitt'
*/

// https://community.bistudio.com/wiki/Dialog_Control#Constants

#define CT_STATIC             0
#define CT_BUTTON             1
#define CT_EDIT               2
#define CT_SLIDER             3
#define CT_COMBO              4
#define CT_LISTBOX            5
#define CT_TOOLBOX            6
#define CT_CHECKBOXES         7
#define CT_PROGRESS           8
#define CT_HTML               9
#define CT_STATIC_SKEW       10
#define CT_ACTIVETEXT        11
#define CT_TREE              12
#define CT_STRUCTURED_TEXT   13
#define CT_CONTEXT_MENU      14
#define CT_CONTROLS_GROUP    15
#define CT_SHORTCUTBUTTON    16
#define CT_XKEYDESC          40
#define CT_XBUTTON           41
#define CT_XLISTBOX          42
#define CT_XSLIDER           43
#define CT_XCOMBO            44
#define CT_ANIMATED_TEXTURE  45
#define CT_CHECKBOX          77
#define CT_OBJECT            80
#define CT_OBJECT_ZOOM       81
#define CT_OBJECT_CONTAINER  82
#define CT_OBJECT_CONT_ANIM  83
#define CT_LINEBREAK         98
#define CT_ANIMATED_USER     99
#define CT_MAP              100
#define CT_MAP_MAIN         101
#define CT_LISTNBOX         102
#define CT_ITEMSLOT         103

#define ST_POS               0x0F
#define ST_HPOS              0x03
#define ST_VPOS              0x0C
#define ST_LEFT              0x00
#define ST_RIGHT             0x01
#define ST_CENTER            0x02
#define ST_DOWN              0x04
#define ST_UP                0x08
#define ST_VCENTER           0x0c
#define ST_TYPE              0xF0
#define ST_SINGLE               0
#define ST_MULTI               16
#define ST_TITLE_BAR           32
#define ST_PICTURE             48
#define ST_FRAME               64
#define ST_BACKGROUND          80
#define ST_GROUP_BOX           96
#define ST_GROUP_BOX2         112
#define ST_HUD_BACKGROUND     128
#define ST_TILE_PICTURE       144
#define ST_WITH_RECT          160
#define ST_LINE               176
#define ST_SHADOW            0x100
#define ST_NO_RECT           0x200 // this style works for CT_STATIC in conjunction with ST_MULTI
#define ST_KEEP_ASPECT_RATIO 0x800
#define ST_TITLE             ST_TITLE_BAR + ST_CENTER  // Slider styles
#define SL_DIR               0x400
#define SL_VERT                  0
#define SL_HORZ              0x400
#define SL_TEXTURES           0x10 // progress bar
#define ST_VERTICAL           0x01
#define ST_HORIZONTAL            0 // Listbox styles
#define LB_TEXTURES           0x10
#define LB_MULTI              0x20
#define FontM         "Zeppelin32" // Tree styles
#define TR_SHOWROOT              1
#define TR_AUTOCOLLAPSE          2 // Message Box styles
#define MB_BUTTON_OK             1
#define MB_BUTTON_CANCEL         2
#define MB_BUTTON_USER           4

#define FARBE_HINTERGRUND      {0.00, 0.00, 0.00, 0.70}
#define SCHWARZ_TRANSPARENT    {0.00, 0.00, 0.00, 0.50}
#define WEISS_TRANSPARENT      {1.00, 1.00, 1.00, 0.50}
#define GRAU_TRANSPARENT       {0.50, 0.50, 0.50, 0.50}
#define FARBE_TRANSPARENT      {0.00, 0.00, 0.00, 0.00}
#define FARBE_WEISS            {1.00, 1.00, 1.00, 1.00}
#define FARBE_HELL_GRAU        {0.75, 0.75, 0.75, 1.00}
#define FARBE_GRAU             {0.50, 0.50, 0.50, 1.00}
#define FARBE_SCHWARZ          {0.00, 0.00, 0.00, 1.00}
#define FARBE_KNALL_BLAU       {0.18, 0.40, 0.77, 0.70}

class schmitt_rscEinfacherText
{
	type       = CT_STATIC;
	style      = ST_SINGLE;

	x          = 0;
	y          = 0;
	h          = 0.040;
	w          = 0.100;

	shadow     = 1;
	text       = "";
	SizeEx     = 0.040;
	font       = "PuristaMedium";

	colorShadow[]      = SCHWARZ_TRANSPARENT;
	colorText[]        = FARBE_WEISS;
	colorBackground[]  = FARBE_TRANSPARENT;
	tooltipColorText[] = FARBE_WEISS;
	tooltipColorBox[]  = FARBE_WEISS;
	tooltipColorShade[]= FARBE_HINTERGRUND;
};

class schmitt_rscUeberschrift : schmitt_rscEinfacherText
{
	colorBackground[] = FARBE_KNALL_BLAU;
};

class schmitt_rscStrukturierterText
{
	type  = CT_STRUCTURED_TEXT;
	style = ST_SINGLE;

	x = 0;
	y = 0;
	h = 0.040;
	w = 0.100;

	size  = 0.040;
	text  = "";
	shadow= 1;

	colorText[] = FARBE_WEISS;

	class Attributes
	{
		shadow= 1;
		color = "#ffffff";
		align = "left";
		font  = "PuristaMedium";
	};
};

class schmitt_rscBild
{
	type  = CT_STATIC;
	style = ST_PICTURE;

	text  = "";
	x     = 0;
	y     = 0;
	w     = 0.100;
	h     = 0.100;

	shadow= 0;
	sizeEx= 0.040;
	font  = "PuristaMedium";

	colorBackground[]  = FARBE_TRANSPARENT;
	colorText[]        = FARBE_WEISS;
	tooltipColorText[] = FARBE_WEISS;
	tooltipColorBox[]  = FARBE_WEISS;
	tooltipColorShade[]= FARBE_HINTERGRUND;
};

class schmitt_rscSchaltflaeche
{
	type   = CT_SHORTCUTBUTTON;
	style  = ST_CENTER + ST_VCENTER;
	idc    = -1;

	x      = 0;
	y      = 0;
	w      = 0.100;
	h      = 0.040;
	size   = 0.040; // "possibly an irrelevant xbox dialog"
	sizeEx = 0.040;

	font       = "PuristaMedium";
	text       = "";
	action     = "";
	default    = 1; // "Whether or not this button is the dialog's initially selected button"
	shadow     = 0;

	period     = 1.0;
	periodFocus= 1.0;
	periodOver = 1.0;

	textureNoShortcut= "";

	// https://community.bistudio.com/wiki/Procedural_Textures

	animTextureNormal  = "#(argb,8,8,3)color(1,1,1,1)";
	animTextureDisabled= "#(argb,8,8,3)color(1,1,1,1)";
	animTextureOver    = "#(argb,8,8,3)color(1,1,1,1)";
	animTextureFocused = "#(argb,8,8,3)color(1,1,1,1)";
	animTexturePressed = "#(argb,8,8,3)color(1,1,1,1)";
	animTextureDefault = "#(argb,8,8,3)color(1,1,1,1)";

	colorBackground[]       = FARBE_KNALL_BLAU;
	colorBackgroundFocused[]= FARBE_WEISS;
	colorBackgroundDisabled[]= FARBE_GRAU;
	colorBackground2[]      = FARBE_HELL_GRAU;
	color[]                 = FARBE_WEISS;
	colorFocused[]          = FARBE_SCHWARZ;
	color2[]                = FARBE_SCHWARZ;
	colorText[]             = FARBE_WEISS;
	colorDisabled[]         = FARBE_GRAU;
	tooltipColorText[]      = FARBE_WEISS;
	tooltipColorBox[]       = FARBE_WEISS;
	tooltipColorShade[]     = FARBE_HINTERGRUND;

	soundEnter[]  = {"\A3\ui_f\data\sound\RscButtonMenu\soundEnter" ,1.00,1};
		// https://community.bistudio.com/wiki/Description.ext#cfgSounds
	soundPush[]   = {"\A3\ui_f\data\sound\RscButtonMenu\soundPush"  ,1.00,1}; // "filename, volume, pitch"
	soundClick[]  = {"\A3\ui_f\data\sound\RscButtonMenu\soundClick" ,1.00,1};
	soundEscape[] = {"\A3\ui_f\data\sound\RscButtonMenu\soundEscape",1.00,1};

	class HitZone // https://community.bistudio.com/wiki/DialogControls-Buttons#TextPos.2FHitZone
	{
		// Die Zahlen sind als Abstände von den jeweiligen Seiten zu interpretieren
		// Was in der Mitte übrig bleibt, die die HitZone, die auf Mausklicks reagiert

		left  = 0.0;
		top   = 0.0;
		right = 0.0;
		bottom= 0.0;
	};

	class TextPos // https://community.bistudio.com/wiki/DialogControls-Buttons#TextPos.2FHitZone
	{
		left  = 0.000;
		top   = 0.001;
		right = 0.000;
		bottom= 0.001;
	};

	class Attributes // https://community.bistudio.com/wiki/Dialog_Control#Attributes_class
	{
		font  = "PuristaLight";
		color = "#E5E5E5";
		align = "center";
		shadow= 0;
	};

	class AttributesImage // https://community.bistudio.com/wiki/Dialog_Control#AttributesImage_class
	{
		font  = "PuristaMedium";
		color = "#E5E5E5";
		align = "left";
	};

	class ShortcutPos // https://community.bistudio.com/wiki/DialogControls-Buttons#ShortcutPos
	{
		left= 0.005;
		top = 0.005;
		w   = 0.0225;
		h   = 0.03;
	};
};

class schmitt_rscExterneSchaltflaeche : schmitt_rscSchaltflaeche
{
	// "extern" im Sinne von, die Schaltfläche ist außerhalb der halbtransparenten Dialog-Hintergrundfläche

	colorBackground[] = FARBE_HINTERGRUND;
};

class schmitt_rscScrollBalken
{
	scrollSpeed= 0.06;
	shadow     = 0;
	width      = 0;
	height     = 0;

	autoScrollEnabled= 1;
	autoScrollSpeed  = -1;
	autoScrollDelay  = 5;
	autoScrollRewind = 0;

	thumb     = "\A3\ui_f\data\gui\cfg\scrollbar\thumb_ca.paa";
	arrowEmpty= "\A3\ui_f\data\gui\cfg\scrollbar\arrowEmpty_ca.paa";
	arrowFull = "\A3\ui_f\data\gui\cfg\scrollbar\arrowFull_ca.paa";
	border    = "\A3\ui_f\data\gui\cfg\scrollbar\border_ca.paa";

	color[]        = FARBE_HELL_GRAU;
	colorActive[]  = FARBE_WEISS;
	colorDisabled[]= FARBE_GRAU;
};

class schmitt_rscDropDownListe
{
	// https://community.bistudio.com/wiki/DialogControls-Combo

	type  = CT_COMBO;
	style = ST_MULTI;

	x          = 0;
	y          = 0;
	w          = 0.200;
	h          = 0.040;
	sizeEx     = 0.040; // "the font size of text (0..1)"
	wholeHeight= 0.40; // "the height of the elapsed box."

	font           = "PuristaMedium";
	shadow         = 0;
	maxHistoryDelay= 1.0;
	arrowFull      = "\A3\ui_f\data\gui\cfg\scrollbar\arrowFull_ca.paa";
	arrowEmpty     = "\A3\ui_f\data\gui\cfg\scrollbar\arrowEmpty_ca.paa";

	colorBackground[]      = GRAU_TRANSPARENT;
	colorSelectBackground[]= FARBE_WEISS;
	colorSelect[]          = FARBE_SCHWARZ;
	colorText[]            = FARBE_WEISS;
	color[]                = FARBE_WEISS;
	colorActive[]          = FARBE_WEISS;
	colorDisabled[]        = FARBE_GRAU;

	soundSelect[]  = {"", 1.0, 1};
	soundExpand[]  = {"", 1.0, 1};
	soundCollapse[]= {"", 1.0, 1};

	class ComboScrollBar : schmitt_rscScrollBalken {};
};

class schmitt_rscEinSpaltenListe
{
	type  = CT_LISTBOX;
	style = ST_MULTI;
	idc   = -1;

	x        = 0;
	y        = 0;
	w        = 0.200;
	h        = 0.500;
	sizeEx   = 0.040;
	rowHeight= 0.050;

	font            = "PuristaMedium";
	arrowFull       = "\A3\ui_f\data\gui\cfg\scrollbar\arrowFull_ca.paa";
	arrowEmpty      = "\A3\ui_f\data\gui\cfg\scrollbar\arrowEmpty_ca.paa";
	maxHistoryDelay = 1;
	autoScrollSpeed = -1;
	autoScrollDelay = 5;
	autoScrollRewind= 0;

	colorSelect[]           = FARBE_WEISS;
	colorText[]             = FARBE_WEISS;
	colorBackground[]       = FARBE_TRANSPARENT;
	colorSelect2[]          = FARBE_WEISS;
	colorSelectBackground[] = WEISS_TRANSPARENT;
	colorSelectBackground2[]= WEISS_TRANSPARENT;
	colorScrollbar[]        = FARBE_GRAU;
	color[]                 = FARBE_WEISS;
	colorActive[]           = FARBE_SCHWARZ;
	colorDisabled[]         = FARBE_GRAU;
	tooltipColorText[]      = FARBE_WEISS;
	tooltipColorBox[]       = FARBE_WEISS;
	tooltipColorShade[]     = SCHWARZ_TRANSPARENT;

	soundSelect[]   = {"", 1.0, 1};
	soundExpand[]   = {"", 1.0, 1};
	soundCollapse[] = {"", 1.0, 1};

	class ListScrollBar : schmitt_rscScrollBalken {};
};

class schmitt_rscMehrSpaltenListe
{
	type  = CT_LISTNBOX;
	style = ST_MULTI;

	sizeEx= 0.040;

	font            = "PuristaMedium";
	shadow          = 0;
	period          = 1.0;
	maxHistoryDelay = 0.5;
	autoScrollSpeed = -1;
	autoScrollDelay = 5;
	autoScrollRewind= 0;

	color[]                 = FARBE_WEISS;
	colorText[]             = FARBE_WEISS;
	colorDisabled[]         = FARBE_GRAU;
	colorScrollbar[]        = FARBE_WEISS;
	colorSelect[]           = FARBE_SCHWARZ;
	colorSelect2[]          = FARBE_SCHWARZ;
	colorSelectBackground[] = FARBE_HELL_GRAU;
	colorSelectBackground2[]= WEISS_TRANSPARENT;

	soundSelect[]   = {"", 1.0, 1};
	soundExpand[]   = {"", 1.0, 1};
	soundCollapse[] = {"", 1.0, 1};

	class ListScrollBar : schmitt_rscScrollBalken {};
};

class schmitt_rscEingabeFeld
{
	type  = CT_EDIT;
	style = ST_LEFT + ST_VCENTER;

	font   = "PuristaMedium";
	shadow = 2;
	sizeEx = 0.040;
	autocomplete = false;
	canModify = 1;

	colorBackground[]= FARBE_SCHWARZ;
	colorText[]      = FARBE_WEISS;
	colorDisabled[]  = FARBE_GRAU;
	colorSelection[] = FARBE_WEISS;
};

class schmitt_rscHorizontalerSchieber
{
	// https://community.bistudio.com/wiki/DialogControls-Sliders

	type  = CT_XSLIDER;
	style = SL_HORZ;

	x = 0;
	y = 0;
	h = 0.040;
	w = 0.400000;

	shadow    = 2;
	arrowEmpty= "\A3\ui_f\data\gui\cfg\slider\arrowEmpty_ca.paa";
	arrowFull = "\A3\ui_f\data\gui\cfg\slider\arrowFull_ca.paa";
	border    = "\A3\ui_f\data\gui\cfg\slider\border_ca.paa";
	thumb     = "\A3\ui_f\data\gui\cfg\slider\thumb_ca.paa";

	color[]        = WEISS_TRANSPARENT;
	colorActive[]  = FARBE_WEISS;
	colorDisabled[]= FARBE_GRAU;
};

class schmitt_rscMapControl
{
	// https://community.bistudio.com/wiki/Dialog_Control_Map

	access = 0;
	idc    = 51;
	type   = CT_MAP_MAIN;
	style  = ST_PICTURE;

	x = 0.10;
	y = 0.10;
	w = 0.80;
	h = 0.60;

	stickX[]   = {0.2,{"Gamma",1,1.5}};
	stickY[]   = {0.2,{"Gamma",1,1.5}};

	ptsPerSquareSea     = 5;
	ptsPerSquareTxt     = 3;
	ptsPerSquareCLn     = 10;
	ptsPerSquareExp     = 10;
	ptsPerSquareCost    = 10;
	ptsPerSquareFor     = 9;
	ptsPerSquareForEdge = 9;
	ptsPerSquareRoad    = 6;
	ptsPerSquareObj     = 9;
	showCountourInterval= 0;
	scaleMin            = 0.001;
	scaleMax            = 1;
	scaleDefault        = 0.20;
	maxSatelliteAlpha   = 0.85;
	alphaFadeStartScale = 0.35;
	alphaFadeEndScale   = 0.4;
	text                = "#(argb,8,8,3)color(1,1,1,1)";
	moveOnEdges         = 0;
	shadow              = 0;

	font       = "TahomaB";
	fontLabel  = "TahomaB";
	fontGrid   = "TahomaB";
	fontUnits  = "TahomaB";
	fontNames  = "TahomaB";
	fontInfo   = "TahomaB";
	fontLevel  = "TahomaB";

	sizeEx     = 0.040;
	sizeExLabel= 0.040;
	sizeExGrid = 0.040;
	sizeExUnits= 0.040;
	sizeExNames= 0.040;
	sizeExInfo = 0.040;
	sizeExLevel= 0.040;

	colorBackground[]         = FARBE_WEISS;
	colorText[]               = FARBE_SCHWARZ;
	colorGrid[]               = {0.10, 0.10, 0.10, 0.60};
	colorGridMap[]            = {0.10, 0.10, 0.10, 0.60};
	colorSea[]                = {0.45, 0.65, 0.85, 0.50};
	colorForest[]             = {0.60, 0.80, 0.40, 0.50};
	colorRocks[]              = {0.00, 0.00, 0.00, 0.30};
	colorCountlines[]         = {0.60, 0.35, 0.20, 0.25};
	colorForestBorder[]       = {0.00, 0.00, 0.00, 0.00};
	colorTracks[]             = {0.85, 0.75, 0.65, 0.15};
	colorRocksBorder[]        = {0.00, 0.00, 0.00, 0.00};
	colorPowerLines[]         = {0.10, 0.10, 0.10, 1.00};
	colorRailWay[]            = {0.80, 0.20, 0.00, 1.00};
	colorMainCountlines[]     = {0.60, 0.35, 0.20, 0.50};
	colorCountlinesWater[]    = {0.50, 0.60, 0.70, 0.30};
	colorMainCountlinesWater[]= {0.50, 0.60, 0.70, 0.60};
	colorNames[]              = {0.10, 0.10, 0.10, 0.90};
	colorMainRoads[]          = {0.90, 0.50, 0.30, 1.00};
	colorMainRoadsFill[]      = {1.00, 0.60, 0.40, 1.00};
	colorRoads[]              = {0.70, 0.70, 0.70, 1.00};
	colorTracksFill[]         = {0.85, 0.75, 0.65, 1.00};
	colorRoadsFill[]          = {1.00, 1.00, 1.00, 1.00};
	colorInactive[]           = {1.00, 1.00, 1.00, 0.50};
	colorLevels[]             = {0.30, 0.20, 0.10, 0.50};
	colorOutside[]            = {0.00, 0.00, 0.00, 1.00};

	class Legend
	{
		x                = 0;
		y                = 0;
		w                = 1.0;
		h                = 1.0;
		sizeEx           = 0.040;
		font             = "PuristaMedium";
		colorBackground[]= {1,1,1,0.5};
		color[]          = {0.00, 0.00, 0.00, 1.00};
	};

	class Task
	{
		colorFailed[]    = {1.00, 0.30, 0.20, 1.00};
		colorCreated[]   = {1.00, 1.00, 1.00, 1.00};
		colorDone[]      = {0.70, 1.00, 0.30, 1.00};
		colorCanceled[]  = {0.70, 0.70, 0.70, 1.00};
		color[]          = FARBE_KNALL_BLAU;
		icon             = "\A3\ui_f\data\map\mapcontrol\taskIcon_CA.paa";
		iconCanceled     = "\A3\ui_f\data\map\mapcontrol\taskIconCanceled_CA.paa";
		iconCreated      = "\A3\ui_f\data\map\mapcontrol\taskIconCreated_CA.paa";
		iconFailed       = "\A3\ui_f\data\map\mapcontrol\taskIconFailed_CA.paa";
		iconDone         = "\A3\ui_f\data\map\mapcontrol\taskIconDone_CA.paa";
		importance       = 1;
		size             = 26;
		coefMin          = 1;
		coefMax          = 1;
	};

	class ActiveMarker
	{
		color[]   = {0.30, 0.10, 0.90, 1.00};
		size      = 50;
	};

	class Command
	{
		color[]   = {1.00, 1.00, 1.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\waypoint_ca.paa";
		size      = 18;
		importance= 1;
		coefMin   = 1;
		coefMax   = 1;
	};

	class CustomMark
	{
		color[]   = {0.00, 0.00, 0.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\custommark_ca.paa";
		size      = 24;
		importance= 1;
		coefMin   = 1;
		coefMax   = 1;
	};

	class Tree
	{
		color[]   = {0.45, 0.64, 0.33, 0.40};
		icon      = "\A3\ui_f\data\map\mapcontrol\bush_ca.paa";
		size      = 12;
		importance= "0.9 * 16 * 0.05";
		coefMin   = 0.25;
		coefMax   = 4;
	};

	class SmallTree
	{
		color[]   = {0.45,0.64,0.33,0.4};
		icon      = "\A3\ui_f\data\map\mapcontrol\bush_ca.paa";
		size      = 12;
		importance= "0.6 * 12 * 0.05";
		coefMin   = 0.25;
		coefMax   = 4;
	};

	class Bush
	{
		color[]   = {0.45,0.64,0.33,0.4};
		icon      = "\A3\ui_f\data\map\mapcontrol\bush_ca.paa";
		size      = "14/2";
		importance= "0.2 * 14 * 0.05 * 0.05";
		coefMin   = 0.25;
		coefMax   = 4;
	};

	class Church
	{
		color[]   = {1.00, 1.00, 1.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\church_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
	};

	class Chapel
	{
		color[]   = {0.00, 0.00, 0.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\Chapel_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
	};

	class Cross
	{
		color[]   = {0.00, 0.00, 0.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\Cross_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
	};

	class Rock
	{
		color[]   = {0.1,0.1,0.1,0.8};
		icon      = "\A3\ui_f\data\map\mapcontrol\rock_ca.paa";
		size      = 12;
		importance= "0.5 * 12 * 0.05";
		coefMin   = 0.25;
		coefMax   = 4;
	};

	class Bunker
	{
		color[]   = {0.00, 0.00, 0.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\bunker_ca.paa";
		size      = 14;
		importance= "1.5 * 14 * 0.05";
		coefMin   = 0.25;
		coefMax   = 4;
	};

	class Fortress
	{
		color[]   = {0.00, 0.00, 0.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\bunker_ca.paa";
		size      = 16;
		importance= "2 * 16 * 0.05";
		coefMin   = 0.25;
		coefMax   = 4;
	};

	class Fountain
	{
		color[]   = {0.00, 0.00, 0.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\fountain_ca.paa";
		size      = 11;
		importance= "1 * 12 * 0.05";
		coefMin   = 0.25;
		coefMax   = 4;
	};

	class ViewTower
	{
		color[]   = {0.00, 0.00, 0.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\viewtower_ca.paa";
		size      = 16;
		importance= "2.5 * 16 * 0.05";
		coefMin   = 0.5;
		coefMax   = 4;
	};

	class Lighthouse
	{
		color[]   = {1.00, 1.00, 1.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\lighthouse_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
	};

	class Quay
	{
		color[]   = {1.00, 1.00, 1.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\quay_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
	};

	class Fuelstation
	{
		color[]   = {1.00, 1.00, 1.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\fuelstation_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
	};

	class Hospital
	{
		color[]   = {1.00, 1.00, 1.00, 1.00};
		icon      = ""; // ausgeblendet
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
	};

	class BusStop
	{
		color[]   = {1.00, 1.00, 1.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\busstop_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
	};

	class Transmitter
	{
		color[]   = {1.00, 1.00, 1.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\transmitter_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
	};

	class Stack
	{
		color[]   = {0.00, 0.00, 0.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\stack_ca.paa";
		size      = 20;
		importance= "2 * 16 * 0.05";
		coefMin   = 0.9;
		coefMax   = 4;
	};

	class Ruin
	{
		color[]   = {0.00, 0.00, 0.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\ruin_ca.paa";
		size      = 16;
		importance= "1.2 * 16 * 0.05";
		coefMin   = 1;
		coefMax   = 4;
	};
	class Tourism
	{
		color[]   = {0.00, 0.00, 0.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\tourism_ca.paa";
		size      = 16;
		importance= "1 * 16 * 0.05";
		coefMin   = 0.7;
		coefMax   = 4;
	};

	class Watertower
	{
		color[]   = {1.00, 1.00, 1.00, 1.00};
		icon      = "\A3\ui_f\data\map\mapcontrol\watertower_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
	};

	class Waypoint
	{
		color[]   = {0.00, 0.00, 0.00, 1.00};
		size      = 24;
		importance= 1;
		coefMin   = 1;
		coefMax   = 1;
		icon      = "\A3\ui_f\data\map\mapcontrol\waypoint_ca.paa";
	};

	class WaypointCompleted
	{
		color[]   = {0.00, 0.00, 0.00, 1.00};
		size      = 24;
		importance= 1;
		coefMin   = 1;
		coefMax   = 1;
		icon      = "\A3\ui_f\data\map\mapcontrol\waypointCompleted_ca.paa";
	};

	class power
	{
		icon      = "\A3\ui_f\data\map\mapcontrol\power_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
		color[]   = {1.00, 1.00, 1.00, 1.00};
	};

	class powersolar
	{
		icon      = "\A3\ui_f\data\map\mapcontrol\powersolar_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
		color[]   = {1.00, 1.00, 1.00, 1.00};
	};

	class powerwave
	{
		icon      = "\A3\ui_f\data\map\mapcontrol\powerwave_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
		color[]   = {1.00, 1.00, 1.00, 1.00};
	};

	class powerwind
	{
		icon      = "\A3\ui_f\data\map\mapcontrol\powerwind_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
		color[]   = {1.00, 1.00, 1.00, 1.00};
	};

	class shipwreck
	{
		icon      = "\A3\ui_f\data\map\mapcontrol\shipwreck_CA.paa";
		size      = 24;
		importance= 1;
		coefMin   = 0.85;
		coefMax   = 1;
		color[]   = {1.00, 1.00, 1.00, 1.00};
	};
};


/*
	File: description.ext
	Autor: Thomas 'smallfly' Ludwig aka 'Schmitt'

	http://www.ludwig-software.de

	Template source: https://community.bistudio.com/wiki/Description.ext

	Es handelt sich um eine Endlosmission für taktische ArmA Clans/Communities.
	Es gibt vier Szenarien, bei denen es jeweils gilt eine Stadt zu erobern, die vom Feind besetzt ist.
	Besondere Vorsicht ist bzgl. der jeweiligen Nachbarorte zu gewährleisten.
	Der Feind agiert überraschend und hinterhältig.
*/

author               = "Schmitt";
onLoadName           = "TvT128 - Endless War";
onLoadMission        = "Public-Mission für die 3. Jägerkompanie";
loadScreen           = "media\icons\endlessWar.paa";

briefing             = 1;
disabledAI           = 1;      // "When 1, removes all playable units which do not have a human player."
disableChannels[]    = {0,2,6};// 0  = Global, 1  = Side, 2  = Command, 6 = System
joinUnassigned       = 1;      // "auto assigned to the side with least players"
respawn              = "BASE"; // Marker nötig mit Namen respawn_west, respawn_east, respawn_guerrila, respawn_civilian
respawnDelay         = 5;      // Neustartverzögerung in Sekunden
enableDebugConsole   = 2;      // '1' bedeutet, dass die Konsole nur offline zur Verfügung steht, bzw. online für eingewählte Admins
respawnDialog        = 1;      // '0' damit keine Punkteauswertung nach dem Tod erscheint
wreckLimit           = 5;      // "Vehicle wreck limit before which ( <= ) wreckRemovalMaxTime
                               // applies and after which ( > ) wreckRemovalMinTime applies"
wreckRemovalMinTime  = 300;    // "Remove all wrecks that have existed longer than wreckRemovalMinTime when wreckLimit is breached"
wreckRemovalMaxTime  = 900;    // "Maximum time a wreck can remain on the ground if total number of wrecks is equal or under wreckLimit."
corpseLimit          = 15;     // "Corpse limit before which ( <= ) corpseRemovalMaxTime applies and after which ( > ) corpseRemovalMinTime applies"
corpseRemovalMinTime = 300;    // "Remove all bodies that have been dead longer than corpseRemovalMinTime when corpseLimit is breached."
corpseRemovalMaxTime = 900;    // "Maximum time a corpse can remain on the ground if total number of corpses is equal or under corpseLimit."
corpseManagerMode    = 3;      // 3 = All_But_Respawned - All units are managed by the manager with exception of respawned (opposite to mode 2) Default value: 0 for SP, 2 for MP
wreckManagerMode     = 3;      // 3 = All_But_Respawned - All vehicles are managed by the manager with exception of respawned (opposite to mode 2) Default value: 0 for SP, 2 for MP

ShowCompass   =1;
ShowMap       =1;
ShowNotePad   =1;
ShowWatch     =1;
ShowDebriefing=1;
ShowGps       =1;

class Header
{
	gameType    = Coop;
	minPlayers  = 1;
	maxPlayers  = 128;
};

// === DIALOGE (mit Maussteuerung) ===

#include "defaultStyle.h"

#include "taw_vd\dialog.hpp"

#include "functions\020_neuesLeben\TodesBildschirmDialog.h"
#include "functions\310_startpunktAuswahlDialog\StartpunktAuswahlDialog.h"
#include "functions\330_adminDialog\AdminDialog.h"

// === ANZEIGEN (ohne Maussteuerung) ===

class RscTitles
{
	#include "functions\305_statusAnzeige\StatusAnzeige.h"
	#include "functions\307_fortschrittAnzeige\FortschrittAnzeige.h"
};

class CfgFunctions
{
	#include "functions\cfgFunctions.h"

	#include "taw_vd\CfgFunctions.hpp"
};

class CfgSounds
{
	sounds[] = {};

	#include "media\sounds\effekte\soundDefinitionen.h"
	#include "media\sounds\sirenen\soundDefinitionen.h"
	#include "media\sounds\musik\soundDefinitionen.h"
	#include "media\sounds\durchsagen\soundDefinitionen.h"
};

class CfgDebriefing
{
	#include "cfgDebriefing.h"
};

class DefaultEventhandlers;


/*
	File: init.sqf
	Autor: Thomas 'smallfly' Ludwig aka 'Schmitt'

	Description:
	"Executed when mission is started (before briefing screen)", https://community.bistudio.com/wiki/Event_Scripts

	Initialization Order: When mission is starting, its components are initialized in the following order:

	- Functions with recompile param set to 1 are recompiled
	- Functions with preInit param set to 1 are called (client + server)
	- Object Init Event Handlers are called
	- Object initialization fields are called
	- Persistent multiplayer functions are called (client only)
	- Modules are initialized
	- initServer.sqf is executed (server only)
	- initPlayerLocal.sqf is executed
	- initPlayerServer.sqf is executed (server only)
	- Functions with postInit param set to 1 are called (client + server)
	- "BIS_fnc_init" variable is set to true
	- init.sqf is executed in multiplayer

	Die init.sqf wird also jeweils beim Server UND beim Client ausgeführt.
*/

Private ["_waffenKisten_blu", "_fahrzeugKisten", "_fahrzeugKisten_red", "_action", "_heliKisten", "_heliKisten_red"];

enableSaving [false, false]; // Speichern deaktiviert; keine Auto-Sicherung

["'init.sqf' wartet auf Abarbeitung der 'initPlayerLocal.sqf' ..."] call schmitt_fnc_statusBerichten;

waitUntil { !isNil "schmitt_initPlayerLocal" };

["Abarbeitung der 'initPlayerLocal.sqf' ist erfolgt, starte 'init.sqf' ..."] call schmitt_fnc_statusBerichten;

diag_log "";
diag_log "/==============\";
diag_log "|   INIT.SQF   |";
diag_log "\==============/";
diag_log "";

[] spawn schmitt_fnc_initialisiereClientUndServerThirdpartySkripte;

[] spawn schmitt_fnc_starteAktualisierungServerInfo;

//cutText ["","BLACK IN", 1];
introKamera cameraEffect ["TERMINATE","BACK"]; camDestroy introKamera; // INTRO KAMERA BEENDEN

_action = recyclingKiste addAction ["Atomwaffen-Bausatz verschrotten", { ["recyclingAnlieferpunkt"] spawn schmitt_fnc_kisteVerschrotten; }];

// === An Waffenkisten soll man sich ausrüsten können ===

_waffenKisten_blu = [waffenKiste_blu1, waffenKiste_blu2, waffenKiste_blu3];

{
	// Normales Infantrie-Squad
	_action = _x addAction ["Ausrüstung #1 Gruppenführer", { [_this select 1, "gruppenfuehrer"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #2 Stellv. Gruppenführer", { [_this select 1, "gruppenfuehrer"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #3 MG-Schütze", { [_this select 1, "mgSchuetze"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #4 Erste Panzerfaust", { [_this select 1, "panzerAbwehr"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #5 MG-Hilfsschütze", { [_this select 1, "mgHilfsschuetze"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #6 Zweite Panzerfaust", { [_this select 1, "panzerAbwehr"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #7 Sanitäter", { [_this select 1, "sanitaeter"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #8 Grenadier", { [_this select 1, "grenadier"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #9 Luftabwehr", { [_this select 1, "luftAbwehr"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #10 Pionier", { [_this select 1, "pionier"] spawn schmitt_fnc_spielerAusruesten; }];

	// Sonderklassen
	_action = _x addAction ["Ausrüstung #A Gruppenscharfschütze", { [_this select 1, "gruppenscharfschuetze"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #B Scharfschütze", { [_this select 1, "scharfschuetze"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #C Spotter", { [_this select 1, "spotter"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #D Pilot", { [_this select 1, "pilot"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #E Crew", { [_this select 1, "crew"] spawn schmitt_fnc_spielerAusruesten; }];
	_action = _x addAction ["Ausrüstung #F UAV-Operator", { [_this select 1, "uavOperator"] spawn schmitt_fnc_spielerAusruesten; }];
}
forEach _waffenKisten_blu;

_fahrzeugKisten = [fahrzeugKiste];

{
	_action = _x addAction ["Funktionsfahrzeug Dingo MG", { ["fahrzeugSpawn_blu", "bw_dingo_wdl"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["Transporter HEMTT", { ["fahrzeugSpawn_blu", "B_Truck_01_transport_F"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["Schützenpanzer Puma", { ["fahrzeugSpawn_blu", "BWA3_Puma_Fleck"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["Kampfpanzer Leopard", { ["fahrzeugSpawn_blu", "BWA3_Leopard2A6M_Fleck"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["LGS Fennek HMG", { ["fahrzeugSpawn_blu", "I_MRAP_03_hmg_F"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
}
forEach _fahrzeugKisten;

_fahrzeugKisten_red = [fahrzeugKiste_red];

{
	_action = _x addAction ["Funktionsfahrzeug BTR-60PB", { ["fahrzeugSpawn_red", "rhs_btr60_vdv"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["Transporter GAZ", { ["fahrzeugSpawn_red", "rhs_gaz66o_vdv"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["Schützenpanzer BMP-1", { ["fahrzeugSpawn_red", "rhs_bmp1_vdv"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["Kampfpanzer 2S25", { ["fahrzeugSpawn_red", "rhs_sprut_vdv"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["LGS Fennek HMG", { ["fahrzeugSpawn_red", "I_MRAP_03_hmg_F"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
}
forEach _fahrzeugKisten_red;

_action = fahrzeugKiste_shuttle1 addAction ["Shuttle GLT Offroad", { ["fahrzeugSpawn_shuttle1", "GLT_Offroad"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
_action = fahrzeugKiste_shuttle2 addAction ["Shuttle GLT Offroad", { ["fahrzeugSpawn_shuttle2", "GLT_Offroad"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
_action = fahrzeugKiste_shuttle3 addAction ["Shuttle GLT Offroad", { ["fahrzeugSpawn_shuttle3", "GLT_Offroad"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];

_action = fahrzeugKiste_shuttle7 addAction ["Shuttle UAZ (offen)", { ["fahrzeugSpawn_shuttle7", "rhs_uaz_open_vdv"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
_action = fahrzeugKiste_shuttle8 addAction ["Shuttle UAZ (offen)", { ["fahrzeugSpawn_shuttle8", "rhs_uaz_open_vdv"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];

_heliKisten = [heliKiste_blu];

{
	_action = _x addAction ["Helikopter AH-9 (Raketen)", { ["heliSpawn_blu", "GLT_AH9_PMC"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["Helikopter MH-9 (unbewaffnet)", { ["heliSpawn_blu", "GLT_MH9_PMC"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["Helikopter Ka-60", { ["heliSpawn_blu", "GLT_KA60_PMC"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["Helikopter Merlin HC-3", { ["heliSpawn_blu", "GLT_Merlin_PMC"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
}
forEach _heliKisten;

_heliKisten_red = [heliKiste_red];

{
	_action = _x addAction ["Helikopter AH-9 (Raketen)", { ["heliSpawn_red", "GLT_AH9_PMC"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["Helikopter MH-9 (unbewaffnet)", { ["heliSpawn_red", "GLT_MH9_PMC"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["Helikopter Ka-60", { ["heliSpawn_red", "GLT_KA60_PMC"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
	_action = _x addAction ["Helikopter Merlin HC-3", { ["heliSpawn_red", "GLT_Merlin_PMC"] spawn schmitt_fnc_neuesFahrzeugPlatzieren; }];
}
forEach _heliKisten_red;

// Starte Feindszenario
_action = missionControlKiste addAction ["Beende aktuelles Szenario"    , {[-1] spawn schmitt_fnc_starteNeuesFeindszenarioTeil1;}];
_action = missionControlKiste addAction ["Starte Szenario 'Stary Sobor'", {[0]  spawn schmitt_fnc_starteNeuesFeindszenarioTeil1;}];
_action = missionControlKiste addAction ["Starte Szenario 'Berezino'"   , {[1]  spawn schmitt_fnc_starteNeuesFeindszenarioTeil1;}];
_action = missionControlKiste addAction ["Starte Szenario 'Zelenogorsk'", {[2]  spawn schmitt_fnc_starteNeuesFeindszenarioTeil1;}];

/*
tf_same_sw_frequencies_for_side = true;
tf_same_lr_frequencies_for_side = true;

tf_freq_west = 40;
tf_freq_east = 50;

tf_freq_west_lr = 60;
tf_freq_east_lr = 70;
*/

TF_give_microdagr_to_soldier = true; // Navipad ausgeben


/*
	File: initPlayerLocal.sqf
	Autor: Thomas 'smallfly' Ludwig aka 'Schmitt'

	"Executed locally when player joins mission (includes both mission start and JIP)"
	https://community.bistudio.com/wiki/Event_Scripts
*/

waitUntil { !isNil "schmitt_server_gestartet" };
["Verbindung wird aufgebaut ..."] call schmitt_fnc_statusBerichten;

diag_log "";
diag_log "/=========================\";
diag_log "|   INITPLAYERLOCAL.SQF   |";
diag_log "\=========================/";
diag_log "";

schmitt_mission_root = call {
	private ["_arr"];
	_arr = toArray str missionConfigFile;
	_arr resize (count _arr - 15);
	toString _arr
}; // source: http://killzonekid.com/arma-scripting-tutorials-mission-root/

_handle = [] execVM "thirdparty\KRON_Strings\KRON_Strings.sqf";
	// Stringmanipulation durch dieses externe Modul ermöglichen
waitUntil {scriptDone _handle};

diag_log "Warte darauf, dass Spielerobjekt seitens ArmA-Engine erkannt wird ...";
waitUntil {!isNull player};
	// "(isNull player) is true for JIP players on their client during initialization",
	// https://community.bistudio.com/wiki/player

diag_log "Warte darauf, dass primäre Anzeige bereit ist ...";
waitUntil {!(isNull (findDisplay 46))};

[] call schmitt_fnc_initialisiereClientEventHandler;
	// ohne diese Eventhandler kann keine Client-Server-Kommunikation stattfinden
[] call schmitt_fnc_initialisiereGlobaleKonstanten;
[] call schmitt_fnc_initialisiereClientVariablen;

_handle = [] spawn schmitt_fnc_initialisiereSpieler;
["Warte auf Spielerinitialisierung ..."] call schmitt_fnc_statusBerichten;
waitUntil {scriptDone _handle};

[] spawn schmitt_fnc_starteAktualisierungStatusAnzeige;
[] spawn schmitt_fnc_clientTaktgeberStarten;
[] spawn schmitt_fnc_meldungenAnzeigen;
[] spawn schmitt_fnc_zeigeWillkommensNachrichten;
[] spawn schmitt_fnc_gegnerAufKarteMarkieren;
[] spawn schmitt_fnc_debugMarkerLoeschen;

switch (side player) do
{
	case WEST: // BLUFOR briefing goes here
	{
		player createDiaryRecord ["Diary", ["Lageinformationen",
			"Der Feind ist im Besitz von Bausätzen, aus denen sich Atomwaffen herstellen lassen,
			und lagert diese in diversen Städten im Einsatzgebiet.
			Finden Sie die Bausätze und bringen Sie diese zur Entsorgung in die Basis.
			Bereits das Sicherstellen einer Kiste macht den gesamten Bausatz für den Feind unbrauchbar."]];
	};

	case EAST:
	{
		player createDiaryRecord ["Diary", ["Lageinformationen",
			"Sie sind im Besitz mehrerer Bausätze, aus denen sich Atomwaffen herstellen lassen und lagern
			diese in diversen Städten im Einsatzgebiet.
			Verteidigen Sie die Kisten und verhindern Sie deren Abtransport in die Gegnerbasis!
			Bereits eine fehlende Kiste macht einen Bausatz unbrauchbar."]];
	};
};

schmitt_initPlayerLocal = true;


/*
	File: initServer.sqf
	Author: Schmitt

	Description:
	"Executed only on server when mission is started.", https://community.bistudio.com/wiki/Event_Scripts
*/

Private ["_handle"];

diag_log "";
diag_log "/====================\";
diag_log "|   INITSERVER.SQF   |";
diag_log "\====================/";
diag_log "";

if (!isDedicated) then {
	["NON-DEDICATED SERVER: Spielerbewegung einfrieren bis Startpunktentscheidung ..."] call schmitt_fnc_statusBerichten;
	player enableSimulation false;
};

_handle = [] execVM "thirdparty\KRON_Strings\KRON_Strings.sqf";
waitUntil {scriptDone _handle};

[] call schmitt_fnc_initialisiereGlobaleKonstanten;
[] call schmitt_fnc_initialisiereServerVariablen;
[] call schmitt_fnc_initialisiereServerEventHandler;

[] spawn schmitt_fnc_serverTaktgeberStarten;
[] spawn schmitt_fnc_zufaelligeTageszeitSetzen;

West setFriend [East, 0];
East setFriend [West, 0];

[] spawn schmitt_fnc_szenarioFeindeAuffuellen;

["Server wurde erfolgreich hochgefahren!"] call schmitt_fnc_statusBerichten;

schmitt_server_gestartet = true;
publicVariable "schmitt_server_gestartet";

/*
	File: onPlayerRespawn.sqf
	Autor: Thomas 'smallfly' Ludwig aka 'Schmitt'
*/

player setVariable ["AGM_Name", name player, true]; // Workaround, da AGM derzeit nicht freiwillig die Namen über den Köpfen anzeigt, sondern "Unbekannt"

player setPos respawn_west;


/*
	File: cfgFunctions.h
	Autor: Thomas 'smallfly' Ludwig aka 'Schmitt'
*/

class Schmitt
{
	tag = "schmitt";

	// ==================
	// === MANAGEMENT ===
	// ==================

	class taktisches_arma
	{
		file = "functions\005_taktischesArma";

		class initialisiereTaktischeKonstanten {};
		class szenarioFeindeAuffuellen {};
		class starteAktualisierungServerInfo {};
		class starteNeuesFeindszenarioTeil1 {};
		class starteNeuesFeindszenarioTeil2 {};
		class starteNeuesFeindszenarioTeil3 {};
		class zufallPosInUmgebung {};
		class einerGruppeWegpunkteZuordnen {};
		class gegnerFahrzeugBemannen {};
		class standardGegnerInfSquadSpawnen {};
		class statischeGegnerWaffeSpawnen {};
		class eigeneEinheitenNaheGegnerSpawn {};
		class gegnerAufKarteMarkieren {};
		class debugMarkerLoeschen {};
		class neuesFahrzeugPlatzieren {};
		class kisteVerschrotten {};
		class spielerAusruesten {};
		class musikAbspielen {};
	};

	class missionsbeginn_client
	{
		file = "functions\010_missionsbeginn\client";

		class clientTaktgeberStarten {};
		class initialisiereClientEventHandler {};
		class initialisiereClientVariablen {};
		class zeigeWillkommensNachrichten {};
	};

	class missionsbeginn_global
	{
		file = "functions\010_missionsbeginn\global";

		class initialisiereGlobaleKonstanten {};
		class initialisiereMarker {};
	};

	class missionsbeginn_server
	{
		file = "functions\010_missionsbeginn\server";

		class datumUndUhrzeitVerteilen {};
		class initialisiereServerEventHandler {};
		class initialisiereServerVariablen {};
		class schrankenAutomatischSchliessen {};
		class serverTaktgeberStarten {};
	};

	class allgemeines
	{
		file = "functions\030_allgemeines";

		class lokalenFlaechenMarkerErstellen {};
		class lokalenPunktMarkerErstellen {};
		class mpPaketAusfuehren {};
		class mpPaketSenden {};
		class objektSoundAbspielen {};
	};
};


/*
	File: fn_starteAktualisierungServerInfo.sqf
	Autor: Thomas 'smallfly' Ludwig aka 'Schmitt'

	Hier werden laufend Feinde gezählt.
*/

Private [
	"_pauseProIntervallInSek",
	"_gesamt", "_anzahlBluforSpieler", "_anzahlOpfor", "_anzahlOpforSpieler",
	"_anzahlInfanterie", "_anzahlPanzerfaust", "_anzahlSonstigeInf",
	"_anzahlFahrzeuge", "_anzahlPanzer", "_anzahlStrassenFzg",
	"_anzahlLuftFzg", "_anzahlMoerser", "_anzahlJeep",
	"_anzahlNaheCenter", "_centerMarker",
	"_stdEinheitenInGegnerSquad", "_centerPos"
];

["Initialisiere Aktualisierung Serverinfo ..."] call schmitt_fnc_statusBerichten;

_pauseProIntervallInSek = 0.5;

while {true} do
{
	_gesamt = count allUnits;
	_anzahlBluforSpieler = {side _x == west} count playableUnits;
	_anzahlOpfor = {side _x == east} count allUnits;
	_anzahlOpforSpieler = {side _x == east} count playableUnits;

	_anzahlInfanterie = {side _x == east && vehicle _x == _x} count allUnits;
	_anzahlPanzerfaust = 0;
	_anzahlSonstigeInf = _anzahlInfanterie - _anzahlPanzerfaust;

	_anzahlFahrzeuge = {
		side _x == east
		&& vehicle _x != _x && alive (driver _x)
	} count allUnits;

	_anzahlPanzer = {
		side _x == east
		&& (vehicle _x != _x)
		&& (_x == driver (vehicle _x))
		&& ((vehicle _x) isKindOf "Tank")
	} count allUnits;

	_anzahlStrassenFzg = {
		side _x == east
		&& (vehicle _x != _x)
		&& (_x == driver (vehicle _x))
		&& ((vehicle _x) isKindOf "LandVehicle")
	} count allUnits;

	_anzahlLuftFzg = {
		side _x == east
		&& (vehicle _x != _x)
		&& (_x == driver (vehicle _x))
		&& ((vehicle _x) isKindOf "Air")
	} count allUnits;

	_anzahlMoerser = {
		side _x == east
		&& (vehicle _x != _x)
		&& ((vehicle _x) isKindOf "O_Mortar_01_F")
	} count allUnits;

	_anzahlJeep = {
		side _x == east
		&& (vehicle _x != _x)
		&& (_x == driver (vehicle _x))
		&& ((vehicle _x) isKindOf SCHMITT_REDFOR_JEEP_KLASSE)
	} count allUnits;

	if (schmitt_aktuellesSzenario != -1) then
	{
		_centerMarker = ((schmitt_szenarioOrte select schmitt_aktuellesSzenario) select SPALTE_SZENARIOORTE_CENTERSPAWN)
			select SPALTE_SZENARIOORTE_MARKERNAME;
		_centerPos = getMarkerPos _centerMarker;
		_anzahlNaheCenter = {(side _x == east) && (_x distance _centerPos) < SCHMITT_RADIUS_CENTER} count allUnits;
	} else {
		_anzahlNaheCenter = 0;
	};

	// === BEI CLIENTS IM DEBUG MODUS DIE ANZAHL DER FEINDE ANZEIGEN ===

	if (!isDedicated) then
	{
		schmitt_serverInfo =
		[
			// Seite 1
			[
				["Szenario", [
					format ["Szenario '%1'", schmitt_aktuellesSzenario],
					format ["%1 Feinde", _anzahlOpfor],
					format ["%1 im Kerngebiet", _anzahlNaheCenter],
					format ["%1 Kisten geb.", schmitt_geborgeneMissionsKisten]
					]],
				["Gesamt", [
					format ["%1 Deutsche", _anzahlBluforSpieler],
					format ["%1/%2 Russen AI", _anzahlOpfor, SCHMITT_MINIMUM_FEINDE],
					format ["%1 Russenspieler", _anzahlOpforSpieler]
					]],
				["Infanterie", [
					format ["%1 insgesamt", _anzahlInfanterie],
					format ["%1 Pzf", _anzahlPanzerfaust],
					format ["%1 Schützen", _anzahlSonstigeInf]
					]],
				["Fahrzeuge", [
					format ["%1 insgesamt", _anzahlFahrzeuge],
					format ["%1/%2 Panzer", _anzahlPanzer, SCHMITT_MAX_GEGNER_PANZER],
					format ["%1 Strassenfzg", _anzahlStrassenFzg],
					format ["%1/%2 Jeeps", _anzahlJeep, SCHMITT_MAX_GEGNER_JEEP],
					format ["%1/%2 Luftfahrzeuge", _anzahlLuftFzg, SCHMITT_MAX_GEGNER_HELIS],
					format ["%1/%2 Mörser", _anzahlMoerser, SCHMITT_MAX_MOERSER_STELLUNGEN]
					]]
			]
		];
	};

	sleep _pauseProIntervallInSek;
};


/*
	File: fn_spielerAusruesten.sqf
	Autor: Thomas 'smallfly' Ludwig aka 'Schmitt'
*/

if (isDedicated) exitWith { diag_log "FEHLER: 'fn_spielerAusruesten.sqf' lässt sich nur clientseitig ausführen!"; };

Private [
	"_anbieter", "_aufrufer", "_actionId",
	"_ausruestungTyp", "_typLesbar",
	"_uniform", "_vest", "_backpack", "_headgear", "_googles",
	"_weapons", "_stdWeapons",
	"_linkItems", "_stdLinkItems", "_itemsToBackpack", "_stdItemsToBackpack",
	"_acePackSuccess",
	"_handMagazine", "_mediSetEinfach", "_handGranaten",
	"_diverseSmokeGranaten",
	"_itemsToUniform", "_stdItemsToUniform",
	"_itemsToVest", "_stdItemsToVest",
	"_primaryWeaponItems", "_stdPrimaryWeaponItems",
	"_handgunItems", "_stdHandgunItems"
];

_aufrufer  = [_this,0,objNull,[objNull]] call BIS_fnc_param;
_ausruestungTyp = [_this,1,"",[""]] call BIS_fnc_param;

systemChat format ["_ausruestungTyp: %1", _ausruestungTyp];

// === VARIABLEN INITIALISIEREN ===

_typLesbar = "";

_weapons = [];
_primaryWeaponItems = [];
_handgunItems = [];
_linkItems = [];

_itemsToUniform = [];
_itemsToVest = [];
_itemsToBackpack = [];

// === SPIELER AUSZIEHEN UND VOLLSTÄNDIG LEEREN ===

removeAllWeapons _aufrufer;
removeAllItems _aufrufer;
removeAllAssignedItems _aufrufer;
removeUniform _aufrufer;
removeVest _aufrufer;
removeBackpack _aufrufer;
removeHeadgear _aufrufer;
removeGoggles _aufrufer;
// {_aufrufer removeMagazine _x} forEach magazines _aufrufer;

_aufrufer setVariable ["cse_medicClass", 0, true]; // Festlegen ob Spieler Sani-Fähigkeiten hat
_aufrufer setVariable ["AGM_IsEOD", false, true]; // Festlegen ob Spieler Explosive Ordnance Disposal Möglichkeiten hat

// === STANDARD AUSRÜSTUNG VORBELEGEN ===

_uniform  = "bw_klamotte_fleck";
_vest     = "GLT_Vest_Flecktarn";
_backpack = "BW_BACKPACK2_FLECK";
_headgear = "GLT_Helmet_Light_Flecktarn";
_googles  = "G_mas_wpn_bala_mask";

// === WAFFEN, AUFSÄTZE, TOOLS ===

_stdWeapons = [
	"BWA3_P8",
	"AGM_Vector"
];

_stdPrimaryWeaponItems = [
	"BWA3_acc_LLM01_flash"
];

_stdHandgunItems = [
	"BWA3_acc_LLM01_irlaser"
];

_stdLinkItems = [
	"ItemMap",
	"ItemCompass",
	"ItemWatch",
	"tf_anprc152",
	"BWA3_ItemNaviPad",
	"AGM_NVG_Wide"
	//"ItemcTab"
];

// === UNIFORM ===

_diverseSmokeGranaten = [
	"SmokeShell",
	"SmokeShell",
	"SmokeShellGreen",
	"SmokeShellRed",
	"Chemlight_green",
	"Chemlight_green",
	"Chemlight_green",
	"Chemlight_green"
];

_stdItemsToUniform = _diverseSmokeGranaten + [
	"AGM_EarBuds",
	"AGM_MapTools",
	"AGM_IR_Strobe_Item",

	"AGM_CableTie",
	"AGM_CableTie",
	"AGM_CableTie",
	"AGM_CableTie",

	"BW_Facepaint"
];

// === WESTE ===

_mediSetEinfach = [
	"cse_tourniquet",
	"cse_tourniquet",

	"cse_bandage_basic",
	"cse_bandage_basic",
	"cse_bandage_basic",
	"cse_bandage_basic",
	"cse_bandage_basic",

	"cse_packing_bandage",
	"cse_packing_bandage",
	"cse_packing_bandage",
	"cse_packing_bandage",
	"cse_packing_bandage",

	"cse_saline_iv",
	"cse_saline_iv",

	"cse_morphine",
	"cse_morphine",

	"cse_epinephrine",
	"cse_epinephrine",
	"cse_epinephrine",
	"cse_epinephrine"

	//"cse_atropine",
	//"cse_atropine",

	//"cse_bandageElastic",
	//"cse_bandageElastic"
];

_handMagazine = [
	"BWA3_15Rnd_9x19_P8", // Magazin für Pistole
	"BWA3_15Rnd_9x19_P8"
];

_stdItemsToVest = _handMagazine + [] + _mediSetEinfach;

// === RUCKSACk ===

_handGranaten = [
	"BWA3_DM51A1", // Splittergranate
	// "BWA3_DM25", // Rauchgranate
	"AGM_M84", // Blendgranate
	"AGM_HandFlare_White",
	"AGM_HandFlare_White",
	"AGM_HandFlare_Red",
	"AGM_HandFlare_Green"
];

_stdItemsToBackpack = [
	// "BWA3_Beret_Jaeger",
	"BWA3_optic_NSV600"
] + _handGranaten;

switch (_ausruestungTyp) do
{
	// === NORMALE INFANTRIEKLASSEN ===

	case "gruppenfuehrer" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#1/#2 Gruppenführer";

		_backpack = "tf_rt1523g_big_bwmod";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = _stdItemsToVest + [
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",

			"BWA3_20Rnd_762x51_G28_Tracer",
			"BWA3_20Rnd_762x51_G28_Tracer"
		];

		_itemsToBackpack = _stdItemsToBackpack + [
			"Laserbatteries",

			"UGL_FlareWhite_F",
			"UGL_FlareGreen_F",
			"UGL_FlareRed_F",

			"1Rnd_Smoke_Grenade_shell",
			"1Rnd_Smoke_Grenade_shell",
			"1Rnd_SmokeGreen_Grenade_shell",
			"1Rnd_SmokeGreen_Grenade_shell",
			"1Rnd_SmokeRed_Grenade_shell",
			"1Rnd_SmokeRed_Grenade_shell"
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
			"BWA3_G27_AG",
			"Laserdesignator"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_ZO4x30"
		];

		_handgunItems = _stdHandgunItems + [];

		_linkItems = _stdLinkItems + [];
	};

	case "mgSchuetze" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#3 MG-Schütze";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = [
		] + _stdItemsToVest;

		_itemsToBackpack = _stdItemsToBackpack + [
			"BWA3_120Rnd_762x51",
			"BWA3_120Rnd_762x51",
			"BWA3_120Rnd_762x51",
			"BWA3_120Rnd_762x51",
			"BWA3_120Rnd_762x51"
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
			"BWA3_MG5"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_ZO4x30"
		];

		_handgunItems = _stdHandgunItems + [];

		_linkItems = _stdLinkItems + [];
	};

	case "panzerAbwehr" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#4/#6 Panzerfaust";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = [
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",

			"BWA3_20Rnd_762x51_G28_Tracer",
			"BWA3_20Rnd_762x51_G28_Tracer"
		] + _stdItemsToVest;

		_itemsToBackpack = _stdItemsToBackpack + [
			"BWA3_optic_NSA80",
			"BWA3_Pzf3_IT"
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
			"BWA3_G27",
			"BWA3_Pzf3"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_ZO4x30"
		];

		_handgunItems = _stdHandgunItems + [];

		_linkItems = _stdLinkItems + [];
	};

	case "mgHilfsschuetze" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#5 MG-Hilfsschütze";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = [
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",

			"BWA3_20Rnd_762x51_G28_Tracer",
			"BWA3_20Rnd_762x51_G28_Tracer"
		] + _stdItemsToVest;

		_itemsToBackpack = _stdItemsToBackpack + [
			"BWA3_120Rnd_762x51",
			"BWA3_120Rnd_762x51",
			"BWA3_120Rnd_762x51"
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
			"BWA3_G27"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_ZO4x30"
		];

		_handgunItems = _stdHandgunItems + [];

		_linkItems = _stdLinkItems + [];
	};

	case "sanitaeter" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#7 Sanitäter";

		_backpack = "BW_BACKPACK2_SAN_FLECK";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = [
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",

			"BWA3_20Rnd_762x51_G28_Tracer",
			"BWA3_20Rnd_762x51_G28_Tracer"
		] + _stdItemsToVest;

		_itemsToBackpack = _itemsToBackpack - _handGranaten;

		_itemsToBackpack = _stdItemsToBackpack + [
			"cse_surgical_kit",
			"cse_personal_aid_kit",

			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",
			"cse_bandage_basic",

			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",
			"cse_packing_bandage",

			"cse_saline_iv",
			"cse_saline_iv",
			"cse_saline_iv",
			"cse_saline_iv",
			"cse_saline_iv",
			"cse_saline_iv",

			"cse_morphine",
			"cse_morphine",
			"cse_morphine",
			"cse_morphine",
			"cse_morphine",
			"cse_morphine",

			"cse_epinephrine",
			"cse_epinephrine",
			"cse_epinephrine",
			"cse_epinephrine",
			"cse_epinephrine",
			"cse_epinephrine",

			"cse_atropine",
			"cse_atropine",

			"cse_bandageElastic",
			"cse_bandageElastic",

			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",

			"BWA3_20Rnd_762x51_G28_Tracer",
			"BWA3_20Rnd_762x51_G28_Tracer"
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
			"BWA3_G27"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_ZO4x30"
		];

		_handgunItems = _stdHandgunItems + [];

		_linkItems = _stdLinkItems + [];

		_aufrufer setVariable ["cse_medicClass", 1, true]; // Festlegen ob Spieler Sani-Fähigkeiten hat
	};

	case "grenadier" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#8 Grenadier";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = [
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",

			"BWA3_20Rnd_762x51_G28_Tracer",
			"BWA3_20Rnd_762x51_G28_Tracer",

			"UGL_FlareWhite_F",
			"UGL_FlareWhite_F",
			"UGL_FlareGreen_F",
			"UGL_FlareGreen_F",
			"UGL_FlareRed_F",
			"UGL_FlareRed_F",

			"1Rnd_Smoke_Grenade_shell",
			"1Rnd_Smoke_Grenade_shell",
			"1Rnd_Smoke_Grenade_shell",
			"1Rnd_Smoke_Grenade_shell",
			"1Rnd_Smoke_Grenade_shell",
			"1Rnd_SmokeGreen_Grenade_shell",
			"1Rnd_SmokeGreen_Grenade_shell",
			"1Rnd_SmokeRed_Grenade_shell",
			"1Rnd_SmokeRed_Grenade_shell"
		] + _stdItemsToVest;

		_itemsToBackpack = _stdItemsToBackpack + [
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell",
			"1Rnd_HE_Grenade_shell"
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
			"BWA3_G27_AG"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_ZO4x30"
		];

		_handgunItems = _stdHandgunItems + [];

		_linkItems = _stdLinkItems + [];
	};

	case "luftAbwehr" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#9 Luftabwehr";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = [
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",
			"BWA3_20Rnd_762x51_G28_AP",

			"BWA3_20Rnd_762x51_G28_Tracer",
			"BWA3_20Rnd_762x51_G28_Tracer"
		] + _stdItemsToVest;

		_itemsToBackpack = _stdItemsToBackpack + [
			"BWA3_optic_NSA80"
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
			"BWA3_G27",
			"BWA3_RGW90_Loaded"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_ZO4x30"
		];

		_handgunItems = _stdHandgunItems + [];

		_linkItems = _stdLinkItems + [];
	};

	case "pionier" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#10 Pionier";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = [
			"BWA3_20Rnd_762x51_G28_Tracer",
			"BWA3_20Rnd_762x51_G28_Tracer",
			"BWA3_20Rnd_762x51_G28_Tracer",
			"BWA3_20Rnd_762x51_G28_Tracer"
		] + _stdItemsToVest;

		_itemsToBackpack = _stdItemsToBackpack + [
			"AGM_Clacker",
			"AGM_M26_Clacker",
			"AGM_DefusalKit",
			"SLAMDirectionalMine_Wire_Mag",
			"ClaymoreDirectionalMine_Remote_Mag",
			"DemoCharge_Remote_Mag",
			"DemoCharge_Remote_Mag"
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
			"BWA3_G27"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_ZO4x30"
		];

		_handgunItems = _stdHandgunItems + [];

		_linkItems = _stdLinkItems + [];

		_aufrufer setVariable ["AGM_IsEOD", true, true]; // Festlegen ob Spieler Explosive Ordnance Disposal Möglichkeiten hat
	};

	// === SONDERKLASSEN ===

	case "gruppenscharfschuetze" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#A Gruppenscharfschütze";

		_uniform  = "BWA3_Vest_Marksman_Fleck";
		_vest     = "BWA3_Vest_Marksman_Fleck";
		_backpack = "GLT_Carryall_Flecktarn";
		_headgear = "GLT_Combat_Helmet_Grass";
		_googles  = "G_mas_wpn_bala_mask";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = [
			"ItemcTabHCam",
			"optic_Nightstalker",
			"20Rnd_mas_762x51_Stanag",
			"20Rnd_mas_762x51_Stanag",
			"20Rnd_mas_762x51_Stanag",
			"20Rnd_mas_762x51_T_Stanag",
			"20Rnd_mas_762x51_T_Stanag",
			"20Rnd_mas_762x51_T_Stanag"
		] + _stdItemsToVest;

		_itemsToBackpack = _stdItemsToBackpack + [
			"RH_12Rnd_45cal_usp",
			"RH_12Rnd_45cal_usp",
			"RH_12Rnd_45cal_usp",
			"APERSTripMine_Wire_Mag",
			"APERSTripMine_Wire_Mag",
			"muzzle_mas_snds_SMc",
			"Pomi_Goggles"
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
			"srifle_mas_hk417_v",
			"RH_usp"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_20x50"
		];

		_handgunItems = ["RH_aacusp", "RH_X2"] + _stdHandgunItems;

		_linkItems = _stdLinkItems + ["AGM_ItemKestrel"];
	};

	case "scharfschuetze" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#B Scharfschütze";

		_uniform  = "BWA3_Vest_Marksman_Fleck";
		_vest     = "BWA3_Vest_Marksman_Fleck";
		_backpack = "GLT_Carryall_Flecktarn";
		_headgear = "GLT_Combat_Helmet_Grass";
		_googles  = "G_mas_wpn_bala_mask";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = [
			"ItemcTabHCam",
			"optic_Nightstalker",
			"20Rnd_mas_762x51_Stanag",
			"20Rnd_mas_762x51_Stanag",
			"20Rnd_mas_762x51_Stanag",
			"20Rnd_mas_762x51_T_Stanag",
			"20Rnd_mas_762x51_T_Stanag",
			"20Rnd_mas_762x51_T_Stanag"
		] + _stdItemsToVest;

		_itemsToBackpack = _stdItemsToBackpack + [
			"RH_12Rnd_45cal_usp",
			"RH_12Rnd_45cal_usp",
			"RH_12Rnd_45cal_usp",
			"APERSTripMine_Wire_Mag",
			"APERSTripMine_Wire_Mag",
			"muzzle_mas_snds_SMc",
			"Pomi_Goggles"
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
			"srifle_mas_hk417_v",
			"RH_usp"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_20x50"
		];

		_handgunItems = ["RH_aacusp", "RH_X2"] + _stdHandgunItems;

		_linkItems = _stdLinkItems + ["AGM_ItemKestrel"];
	};

	case "spotter" :
	{
		_typLesbar = "#C Spotter";

		_itemsToUniform = _stdItemsToUniform + [
		];

		_linkItems = _stdLinkItems + [
			"ACE_SpottingScope",
			"ACE_Kestrel4500",
			"ACRE_PRC148_UHF"
		];

		_itemsToBackpack = _diverseSmokeGranaten + [
			"ACE_Medkit",
			"ACE_Medkit",
			"ACE_Bandage",
			"ACE_Bandage",
			"ACE_LargeBandage",
			"ACE_LargeBandage",
			"ACE_Morphine",
			"ACE_Morphine",
			"Ace_Epinephrine",
			"Ace_Epinephrine",
			"5Rnd_86x70_L115A1",
			"5Rnd_86x70_L115A1",
			"5Rnd_86x70_L115A1"
		];

		_weapons = [
			"ACE_BackPack_ACR_FL",
			"ACE_G36A2"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_ZO4x30"
		];

		_handgunItems = _stdHandgunItems + [];
	};

	case "pilot" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#D Pilot";

		_uniform  = "BWA3_Uniform_Crew_Fleck";
		_vest     = "GLT_Vest_Light1_Flecktarn";
		_backpack = "tf_rt1523g_big_bwmod";
		_headgear = "H_PilotHelmetHeli_O";
		_googles  = "G_Aviator";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = [
			"hlc_30Rnd_9x19_GD_MP5",
			"hlc_30Rnd_9x19_GD_MP5",
			"hlc_30Rnd_9x19_GD_MP5",
			"hlc_30Rnd_9x19_GD_MP5",
			"hlc_30Rnd_9x19_GD_MP5"
		] + _stdItemsToVest;

		_itemsToBackpack = _stdItemsToBackpack + [
			"hlc_smg_mp5k_PDW",
			"SMA_AIMPOINT",
			"BWA3_Beret_HFlieger"
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_RSAS"
		];

		_handgunItems = _stdHandgunItems + [];

		_linkItems = _stdLinkItems + [];
	};

	case "crew" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#E Crew";

		_uniform  = "BWA3_Uniform_Crew_Fleck";
		_vest     = "GLT_Vest_Light1_Flecktarn";
		_backpack = "";
		_headgear = "H_CrewHelmetHeli_O";
		_googles  = "G_Aviator";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = [
			"hlc_30Rnd_9x19_GD_MP5",
			"hlc_30Rnd_9x19_GD_MP5",
			"hlc_30Rnd_9x19_GD_MP5",
			"hlc_30Rnd_9x19_GD_MP5",
			"hlc_30Rnd_9x19_GD_MP5",
			"BWA3_30Rnd_556x45_G36_AP",
			"BWA3_30Rnd_556x45_G36_AP",
			"BWA3_30Rnd_556x45_G36_AP",
			"BWA3_30Rnd_556x45_G36_AP",
			"BWA3_30Rnd_556x45_G36_AP"
		] + _stdItemsToVest;

		_itemsToBackpack = _stdItemsToBackpack + [
			""
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
			"BWA3_G36K"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_RSAS"
		];

		_handgunItems = _stdHandgunItems + [];

		_linkItems = _stdLinkItems + [];
	};

	case "uavOperator" :
	{
		// === STAMMDATEN ===

		_typLesbar = "#F UAV-Operator";

		_vest     = "GLT_Vest_Flecktarn";
		_backpack = "GLT_Backpack_Flecktarn_UAV";
		_headgear = "GLT_Helmet_Light_Flecktarn";

		// === AUSRÜSTUNG IN UNIFORM, VESTE, BACKPACK ===

		_itemsToUniform = _stdItemsToUniform + [
		];

		_itemsToVest = [
			"AGM_UAVBattery"
		] + _stdItemsToVest;

		_itemsToBackpack = _stdItemsToBackpack + [
			""
		];

		// === WAFFEN UND AUFSÄTZE ===

		_weapons = [
			"BWA3_G27",
			"Laserdesignator"
		] + _stdWeapons;

		_primaryWeaponItems = _stdPrimaryWeaponItems + [
			"BWA3_optic_ZO4x30"
		];

		_handgunItems = _stdHandgunItems + [];

		_linkItems = _stdLinkItems + [
			"B_UavTerminal"
		];
	};

	default {
		_typLesbar = "Ungültig";
	};
};

// === KLAMOTTEN UND ZUSÄTZE ANZIEHEN ===

if (_uniform  != "") then { _aufrufer forceAddUniform _uniform };
if (_vest     != "") then { _aufrufer addVest _vest };
if (_backpack != "") then { _aufrufer addBackpack _backpack };
if (_headgear != "") then { _aufrufer addHeadgear _headgear } ;
if (_googles  != "") then { _aufrufer addGoggles _googles };

// === SPIELER AUSRÜSTEN ===

if (_uniform  != "") then { {_aufrufer addItemToUniform _x } forEach _itemsToUniform  };
if (_vest     != "") then { {_aufrufer addItemToVest _x    } forEach _itemsToVest     };
if (_backpack != "") then { {_aufrufer addItemToBackpack _x} forEach _itemsToBackpack };

// {_aufrufer addMagazine _x} forEach _ammo; // Magazine VOR Waffen zuweisen, dann muss nicht manuell nachgeladen werden
{_aufrufer addWeapon _x} forEach _weapons;
{_aufrufer linkItem _x} forEach _linkItems;
{_aufrufer addPrimaryWeaponItem _x} forEach _primaryWeaponItems;
{_aufrufer addHandgunItem _x} forEach _handgunItems;

[_aufrufer, "QRF_jgkp"] call bis_fnc_setUnitInsignia;

// === PROZESS ABSCHLIESSEN ===

_aufrufer selectWeapon (primaryWeapon _aufrufer);

systemChat format ["Standardausrüstung '%1' zugewiesen!", _typLesbar];

//_anbieter removeAction _actionId;


/*
	File: soundDefinitionen.h
	Autor: Thomas 'smallfly' Ludwig aka 'Schmitt'
*/

class sireneSpezial
{
	// https://www.freesound.org/people/mungous/sounds/62878/
	// Artist: mungous
	// Lizenz: Attribution Noncommercial License

	name = "sireneSpezial";
	sound[] = {"\media\sounds\sirenen\sireneSpezial.ogg", 1.0, 1};
	titles[] = {};
};

class sireneDorf
{
	// Quelle: http://www.einsatzvideos.net

	name = "sireneDorf";
	sound[] = {"\media\sounds\sirenen\sireneDorf.ogg", 1.3, 1};
	titles[] = {};
};
